Ordering Information for XIENCE Skypoint™ Stent

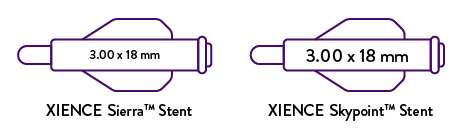

Skypoint Hub

Catheter Hub with XIENCE Skypoint™ Stent

Compared to previous generations of the XIENCE™ Stents, the XIENCE Skypoint™ Stent has an improved catheter hub, with more visible stent size labeling.

Stent Diameter Stent Length Post-Dilatation Limit
8 mm 12 mm 15 mm 18 mm 23 mm 28 mm 33 mm 38 mm 48 mm
2.0 mm 1800200-08 1800200-12 1800200-15 1800200-18 1800200-23 1800200-28 1800200-33 1800200-38 - 3.75 mm
2.25 mm 1800225-08 1800225-12 1800225-15 1800225-18 1800225-23 1800225-28 1800225-33 1800225-38 - 3.75 mm
2.5 mm 1800250-08 1800250-12 1800250-15 1800250-18 1800250-23 1800250-28 1800250-33 1800250-38 1800250-48 3.75 mm
2.75 mm 1800275-08 1800275-12 1800275-15 1800275-18 1800275-23 1800275-28 1800275-33 1800275-38 1800275-48 3.75 mm
3.0 mm 1800300-08 1800300-12 1800300-15 1800300-18 1800300-23 1800300-28 1800300-33 1800300-38 1800300-48 3.75 mm
3.25 mm 1800325-08 1800325-12 1800325-15 1800325-18 1800325-23 1800325-28 1800325-33 1800325-38 - 3.75 mm
3.5 mm 1800350-08 1800350-12 1800350-15 1800350-18 1800350-23 1800350-28 1800350-33 1800350-38 1800350-48 5.75 mm
4.0 mm 1800400-08 1800400-12 1800400-15 1800400-18 1800400-23 1800400-28 1800400-33 1800400-38 1800400-48 5.75 mm
4.5 mm - 1800450-12 1800450-15 1800450-18 1800450-23 1800450-28 1800450-33 - - 5.75 mm
5.0 mm - 1800500-12 1800500-15 1800500-18 1800500-23 1800500-28 1800500-33 - - 5.75 mm

Product Specifications for XIENCE Skypoint™ Stent

Stent Specifics

Stent Design MULTI-LINK,
Peak-to-Valley Design
Stent Material L-605 Cobalt Chromium
Drug Everolimus
Drug Dose Density 100 µg/cm²
Polymer Fluorinated Copolymer
Strut Thickness 0.0032" (81 µm)
MRI Compatibility MR Conditional
(see IFU for specific conditions)
Post-Dilation Sizes
2.00-3.25 mm
3.5-5.0 mm
Post-Dilation Limit
3.75 mm
5.75 mm

Delivery System Specifications

Nominal Pressure 9 atm for 2.0-2.5 mm;
12 atm for 2.75-5.0 mm
Rated Burst Pressure 16 atm for All Diameters
Min. GC/Sheath Diameter 5F / 0.056" / 1.42 mm (2.0-4.0 mm, 8-38 mm)
6F / 0.070" / 1.78 mm (2.5-4.0 mm, 48 mm)
6F / 0.070" / 1.78 mm (4.5-5.0 mm, 12-33 mm)
Balloon Material Pebax 72D
Working Catheter Length 145 cm
Shelf Life 36 months

  • Manuals & Technical Resources
    Manuals & Technical Resources
  • Cardiovascular Products
    Cardiovascular Products
  • Customer Service
    Customer Service

References

  1. Zanchin C, et al. JACC Cardiovasc Interv. 2019;12(17):1665-1675. Serruys P, et al. N Engl J Med. 2010;363:136-146. Shiomi H, et al. JACC Cardiovasc Interv. 2019;12:637-647. Kufner S, et al. Circulation. 2019:139(3):325-333. Palmerini T, et al. Lancet. 2013;379:1393-1402. Bangalore S, et al. Circulation. 2012;125:2873-2891. Bangalore S, et al. Circ Cardiovasc Interv. 2013;6(6):378-390. Pilgrim T, et al. Lancet. 2014;384:2111-2122. Pilgrim T, et al. Lancet. 2018;392:737-746. Data on file at Abbott.
