Steer With Success

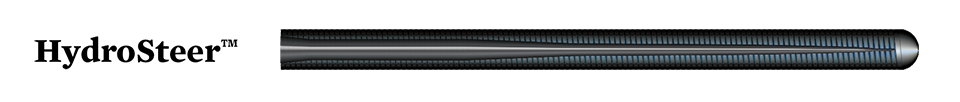

HydroSteer™ guide wires are available in 150 cm, 180 cm and 260 cm lengths.

Nitinol Guide Wire Core

  • Offers kink resistance, maintains excellent flexibility, and provides durability for navigating through tortuous vasculature1

Lubricious Hydrophilic Coating

  • Provides enhanced navigation through challenging anatomy1

Polymer Jacket

  • Enhances trackability1

Optional Torque Device

  • Enhances steerability by aiding directional control of the peripheral guide wire during use

Ordering Information

Product Part Number Diameter Length Description “J” Radius
HydroSteer™ 405057 0.035 in 150 cm Standard, Angled Regular tip taper
HydroSteer™ 405061 0.035 in 180 cm Standard, Angled Regular tip taper
HydroSteer™ 405063 0.035 in 260 cm Standard, Angled Regular tip taper
HydroSteer™ 405099 N/A N/A HydroSteer™ Torque Device N/A

Tests performed by and data on file at Abbott.

Reference

  1. Tóth GG, Yamane M, Heyndrickx GR. Heart. 2015;101:645–652.

Important Safety Information

Rx HydroSteer™ GUIDEWIRES



INDICATIONS FOR USE

Abbott Medical guidewires are intended for use in the percutaneous introduction of catheters.



CONTRAINDICATIONS

There are no known contraindications for this device.



WARNINGS

Do not reuse this device. Discard after one procedure. Thorough cleaning of biological and foreign material is not possible. Adverse patient reactions may result from reuse of this device.

  1. The hydrophilic guidewire may slide entirely into the catheter, sheath introducer, vessel dilator or other device because of its low sliding friction. To prevent this, keep at least 5 cm of the wire protruding from the device fitting at all times.
  2. To prevent possible tissue damage, care should be taken when manipulating a device over a guidewire during the device’s placement and withdrawal. If resistance is felt during device placement, discontinue the procedure and determine the cause of resistance before proceeding. If the cause of resistance cannot be determined, remove the guidewire and device as a unit to prevent possible damage and/or complications.
  3. When using a guidewire, potential exists for thrombus formation or emboli, arterial or venous wall damage and/or plaque dislodgment. The physician should be familiar with the literature concerning the complications of angiography.
  4. Abbott Medical does not recommend a particular technique for the use of this guidewire. The steps contained in the directions are for information purposes only. Each physician should evaluate their appropriateness according to individual patient condition and his or her medical training and experience.



COMPLICATIONS

Procedures requiring percutaneous catheter/guidewire introduction should not be attempted by physicians unfamiliar with the possible complications. Complications may occur during certain procedures but may not be limited to air embolism, hematoma formation, sepsis/infection, excessive bleeding, vessel damage.

Rx HydroSteer™ Torque Device



INDICATIONS

Abbott Medical HydroSteer™ Torque Device is intended for use with HydroSteer™ or other guide wires to aid in manipulation of the wire.



CONTRAINDICATIONS

There are no known contraindications for this device.



WARNINGS

Do not reuse this device. Discard after one procedure. Thorough cleaning of biological and foreign material is not possible. Adverse patient reactions may result from reuse of this device.

Abbott Medical does not recommend a particular technique for the use of this device. The steps contained in the directions are for information purposes only. Each physician should evaluate their appropriateness according to individual patient condition and his or her medical training and experience.



COMPLICATIONS

Procedures requiring percutaneous catheter/guide wire introduction should not be attempted by physicians unfamiliar with the possible complications. Complications may occur during certain procedures but may not be limited to air embolism, hematoma formation, sepsis/infection, excessive bleeding, vessel damage.

Important Safety Information

MAT-2006304 v1.0
