These peripheral workhorse guide wires offer different support and penetration power to access and penetrate soft to heavily calcified lesions.

The Power to Connect

Hi-Torque Connect™ Guide Wire

Hi-Torque Connect™ .018 peripheral workhorse guidewire for soft to moderately calcified lesions

Supportive—for focal stenosis. This workhorse guide wire has a supportive body, soft tip, and polymer cover.

4.4 g tip load* for soft to moderately calcified lesions1

Hi-Torque Connect™ Flex Guide Wire

Hi-Torque Connect™ .018 peripheral workhorse guidewire for soft to moderately calcified lesions

Trackable—for tortuous anatomy. This workhorse guide wire has a flexible body, stiff tip, and polymer cover.

14.9 g tip load* for moderately calcified lesions1

Options for Hi-Torque Connect™ and Hi-Torque Connect™ Flex Guide Wires

Support

Choose varying levels of support to provide options for lesion crossing in straight to tortuous anatomies

Choice

Select either 4.4 g or 14.9 g tip load, and corresponding penetration powers, to enhance crossing the lesion in either soft or moderate calcification*

Control

The core-to-tip guide wire design enables outstanding torque performance and control*

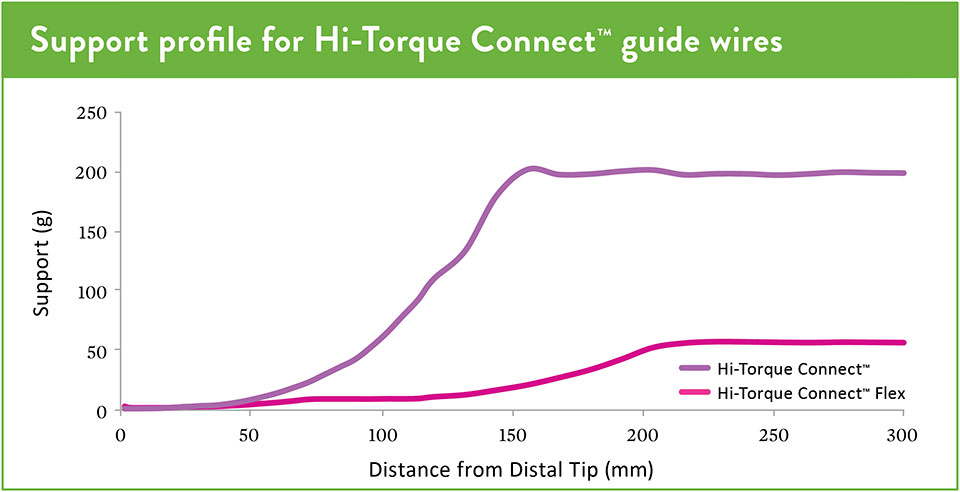

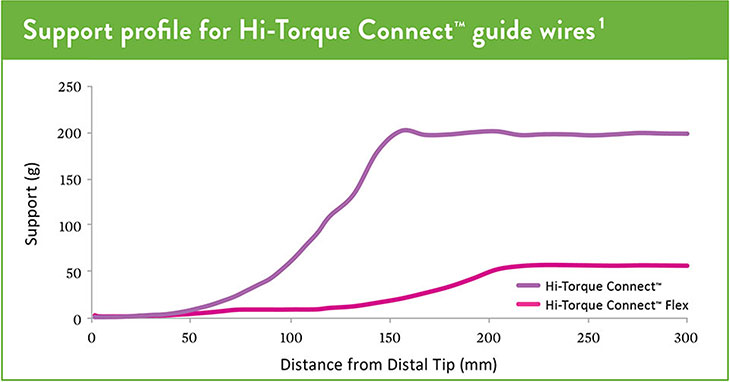

Connect Family Tip Loads

Ordering Information

Product Part Number Diameter Length Tip Load Tip Style Units Per Package
Hi-Torque Connect™ 1012587 0.018 in 145 cm 4.4 g Core-To-Tip 5
Hi-Torque Connect™ 1012588 0.018 in 195 cm 4.4 g
Core-To-Tip 5
Hi-Torque Connect™ 1012589 0.018 in 300 cm 4.4 g
Core-To-Tip 5
Hi-Torque Connect™ Flex 1012590 0.018 in 145 cm 14.9 g
Core-To-Tip 5
Hi-Torque Connect™ Flex 1012591 0.018 in 195 cm
14.9 g
Core-To-Tip 5
Hi-Torque Connect™ Flex 1012592 0.018 in 300 cm 14.9 g
Core-To-Tip 5

*Tests performed by and data on file at Abbott.

References

  1. Tóth GG, Yamane M, Heyndrickx GR. Heart. 2015;101:645–652.

Important Safety Information

Rx Hi-Torque™ Guide Wires



INDICATIONS

Hi-Torque Guide Wires are indicated to facilitate the placement of percutaneous devices during Percutaneous Transluminal Angioplasty (PTA) in peripheral arteries such as femoral, popliteal and infra-popliteal arteries. This guide wire may also be used with compatible stent devices during therapeutic procedures.



CONTRAINDICATIONS

Hi-Torque Wires are not intended for use in the coronary and cerebral vasculature or in patients judged not acceptable for percutaneous intervention.



WARNINGS

• A guide wire is a delicate instrument and must not be advanced, withdrawn, or torqued if resistance is met. Guide wire manipulations must always be observed under fluoroscopy. • The Hi-Torque™ family of guide wires has distal ends of varying stiffness. Operate these guide wires carefully so as to not injure the blood vessel, observing the information in these instructions. The higher torque performance, stiffer distal ends, and / or higher advancement force may present a higher risk of perforation or injury than a guide wire with a more pliable distal end. Therefore, use the guide wire with the least stiff distal end that will treat the lesion, and use extreme care to minimize the risk of perforation or other damage to blood vessels. • If the guide wire is removed and is to be re-inserted, it must be inspected for signs of damage (weakened or kinked segments) prior to re-introduction. Do not re-introduce if guide wire is weakened or kinked.

Do Not:
• Push, auger, withdraw, or torque a guide wire that meets excessive resistance. • Torque a guide wire if the tip becomes entrapped within the vasculature. • Allow the guide wire tip to remain in a prolapsed condition.

Do:
• Advance or withdraw the guide wire slowly. • Use the radiopaque marker of the interventional device to confirm position. • Examine the tip movement under fluoroscopy before manipulating, moving, or torquing the guide wire. • Observe the wire under fluoroscopy for tip buckling, which is a sign of resistance. • Maintain continuous flush while removing and reinserting the guide wire to prevent air from entering the catheter system. Perform exchanges slowly to prevent air entry and / or trauma. • When reintroducing the guide wire, confirm that the interventional device tip is free within the vessel lumen and that the tip is parallel to the vessel wall. • Use extreme caution when moving a guide wire through a non-endothelialized stent, or through stent struts, into a bifurcated vessel. Use of this technique involves additional patient risks, including the risk that the wire may become caught on the stent strut.



PRECAUTIONS

• Failure to follow the instructions may compromise guide wire performance and result in complications. • Prior to use, confirm compatibility of guide wire outer diameter with the balloon catheter. • Guide wire advancement, withdrawal, and torquing should be monitored by fluoroscopy.

Important Safety Information

MAT-2006302 v2.0
