These workhorse peripheral guide wires offer different support and penetration power to access and penetrate soft to heavily calcified lesions.

The Power to Connect

Hi-Torque Connect™ Guide Wire

Hi-Torque Connect™ .018 peripheral workhorse guidewire for soft to moderately calcified lesions

Supportive—for focal stenosis. This workhorse guide wire has a supportive body, soft tip, and polymer cover.

4.4 g tip load* for soft to moderately calcified lesions1

Hi-Torque Connect™ Flex Guide Wire

Hi-Torque Connect™ .018 peripheral workhorse guidewire for soft to moderately calcified lesions

Trackable—for tortuous anatomy. This workhorse guide wire has a flexible body, stiff tip, and polymer cover.

14.9 g tip load* for moderately calcified lesions1

Ordering information for Hi-Torque Connect™ 250 T Guide Wires can be found in the Specialty Guide Wire Section.

Options for Hi-Torque Connect™ and Hi-Torque Connect™ Flex Guide Wires

Support

Choose varying levels of support to provide options for lesion crossing in straight to tortuous anatomies

Choice

Select either 4.4 g or 14.9 g tip load*, and corresponding penetration powers, to enhance crossing the lesion in either soft or moderate calcification

Control

The core-to-tip guide wire design enables outstanding torque performance and control

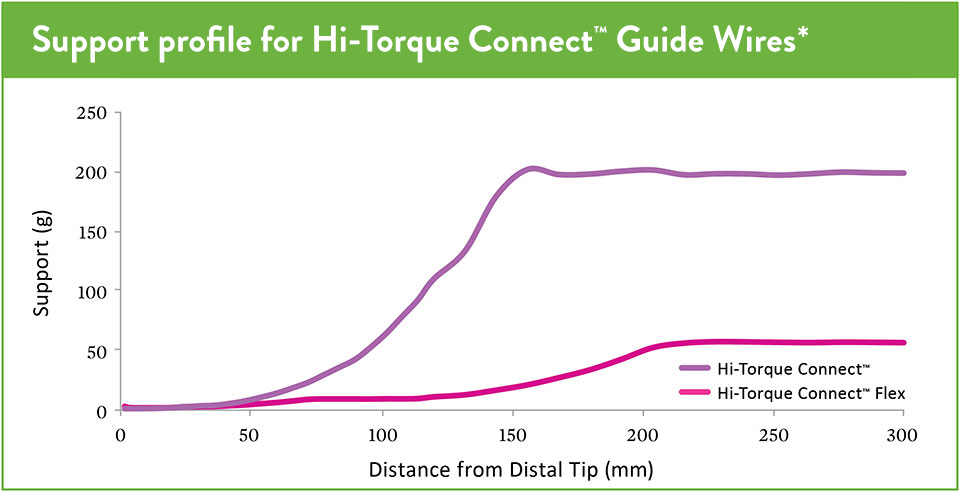

Connect Family Tip Loads

Ordering information for Hi-Torque Connect™ 250 T Guide Wires can be found in the Specialty Guide Wire Section.

Ordering Information

Product Part Number Diameter Length Tip Load* Tip Style
Hi-Torque Connect™ 1012587 0.018 in 145 cm 4.4 g Core-To-Tip
Hi-Torque Connect™ 1012588 0.018 in 195 cm 4.4 g
Core-To-Tip
Hi-Torque Connect™ 1012589 0.018 in 300 cm 4.4 g
Core-To-Tip
Hi-Torque Connect™ Flex 1012590 0.018 in 145 cm 14.9 g
Core-To-Tip
Hi-Torque Connect™ Flex 1012591 0.018 in 195 cm
14.9 g
Core-To-Tip
Hi-Torque Connect™ Flex 1012592 0.018 in 300 cm 14.9 g
Core-To-Tip

*Tests performed by and data on file at Abbott.

References

  1. Tóth GG, Yamane M, Heyndrickx GR. Heart. 2015;101:645–652.
