Hi-Torque Proceed™

Peripheral Specialty Guide Wires

Hi-Torque Proceed™

Proceed in engaging and navigating through complex lesions.¹

Hi-Torque Proceed™

Superb lesion engagement

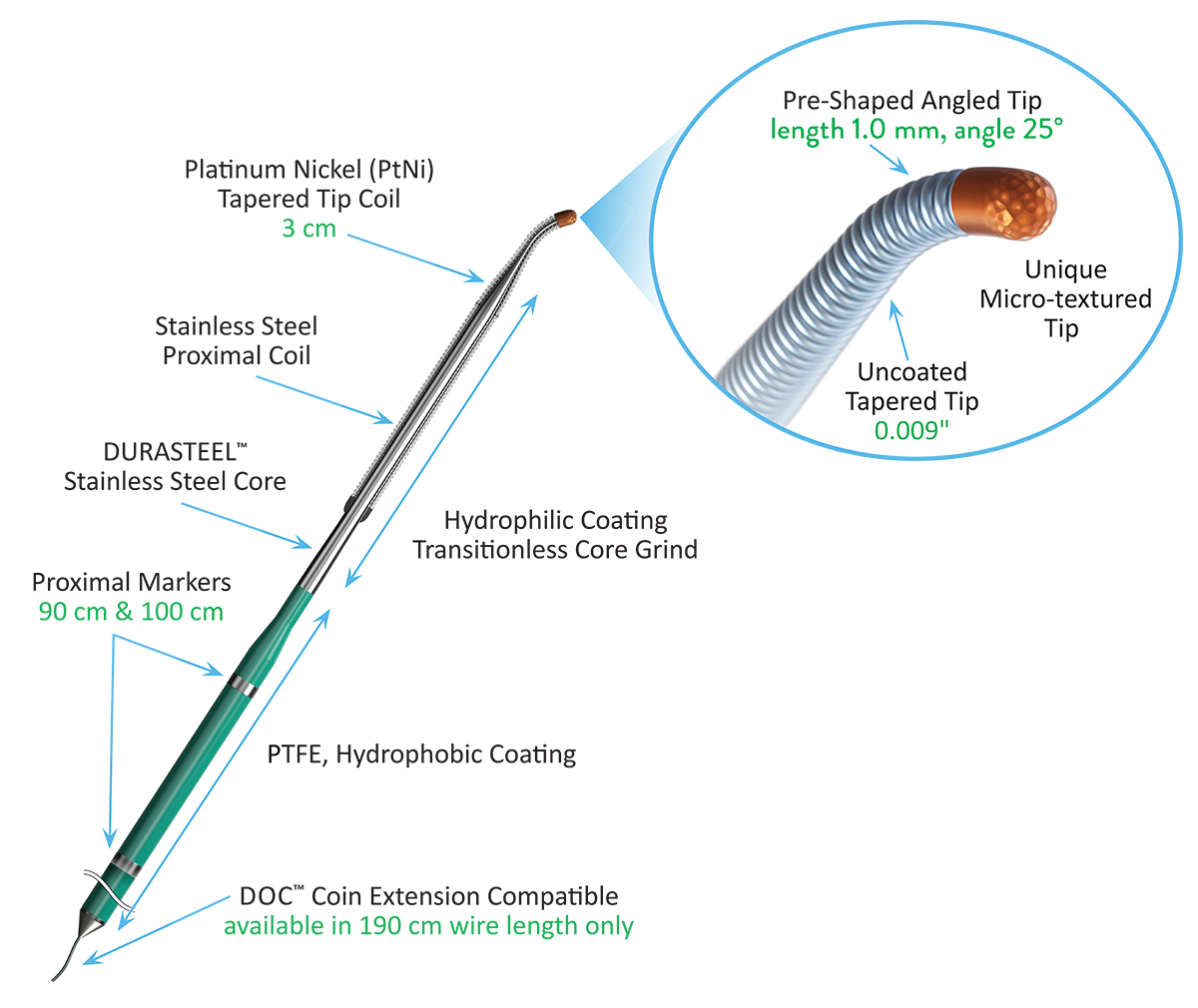

Unique micro-textured tip

Improve lesion engagement²
Reduce tip deflection off lesion²

Uncoated tip¹

Provides improved tactile feedback for tip positioning and navigation

Tapered tip¹

For lesion penetration

Precise control and navigation

1 mm, 25° angled tip¹ facilitates navigation through lesion and optimizes consistency of wire performance

Advancing options for crossing complex lesions¹

Next-generation 014 specialty wire
2 levels of penetration power and tip loads² provides options for various lesion types

Tip Load, Penetration Power, and Support Profiles²

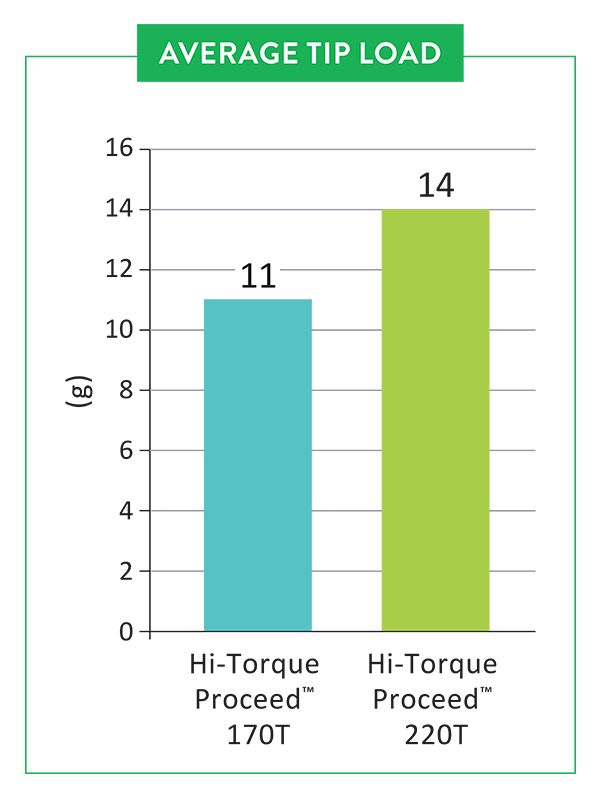

Hi-Torque Proceed™ Average Tip Load

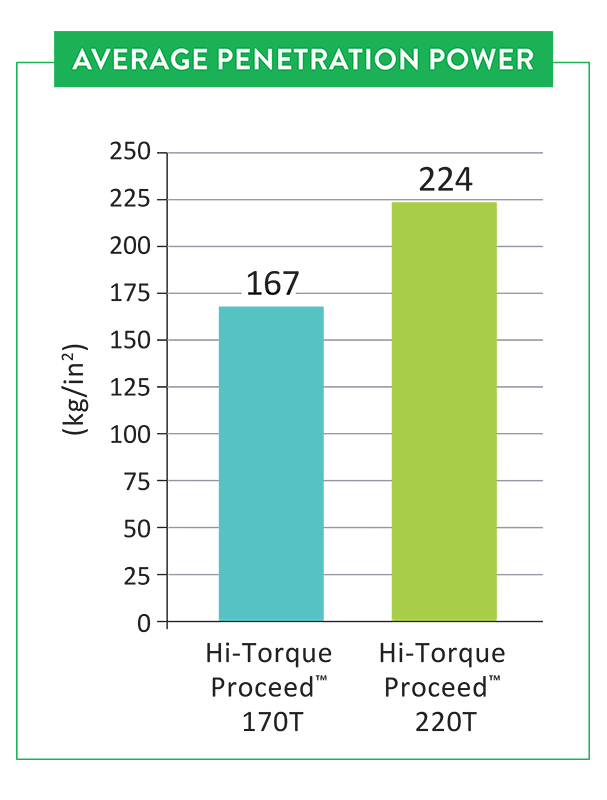

Hi-Torque Proceed™ Average Penetration Power

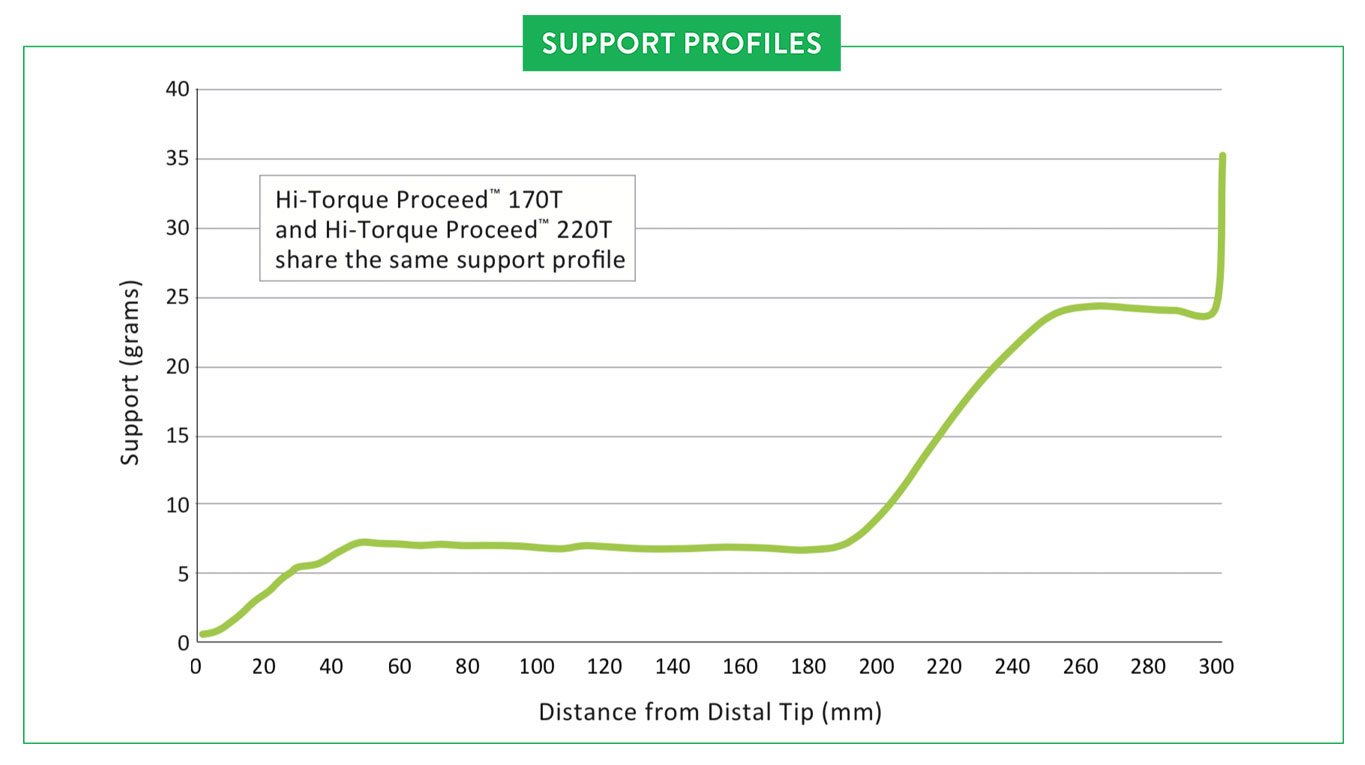

Hi-Torque Proceed™ Support Profiles

Ordering Information

Product	Part Number	Diameter	Length	Tip Load	Tip Style
Hi-Torque Proceed™ 170T, Angled	1030905	0.014 in	190 cm	11 g	Core-to-Tip
Hi-Torque Proceed™ 170T, Angled	1030906	0.014 in	300 cm	11 g	Core-to-Tip
Hi-Torque Proceed™ 220T, Angled	1030907	0.014 in	190 cm	14 g	Core-to-Tip
Hi-Torque Proceed™ 220T, Angled	1030908	0.014 in	300 cm	14 g	Core-to-Tip

Reference

Data on file at Abbott
Tests performed by and data on file at Abbott

MAT-2102071 v1.0

Information contained herein for distribution outside the U.S. only.

CAUTION: These products are intended for use by or under the direction of a physician. Prior to use, reference the Instructions for Use, inside the product carton (when available) or online for more detailed information on Indications, Contraindications, Warnings, Precautions and Adverse Events.

Illustrations are artist's representations only and should not be considered as engineering drawings or photographs.
