Don't Compromise. Take Command.

Excellent Torque and Support

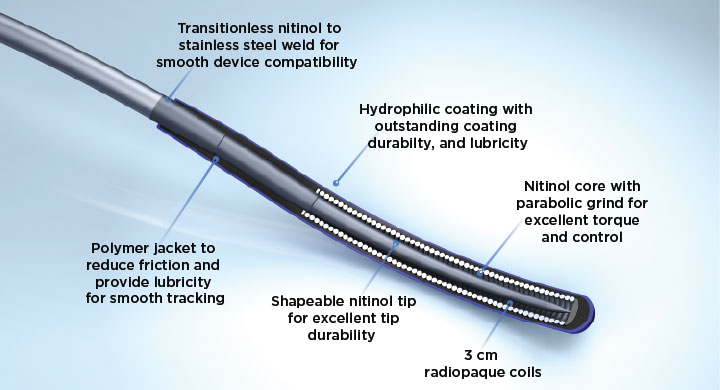

  • Stainless steel body and nitinol tip provide the optimal balance of control and durability
  • Transitionless fusion weld enables smooth device compatibility
  • Hydrophilic coating on a radiopaque polymer provides excellent lubricity and visibility
  • Core-to-tip design enables 1:1 torque over the length of the peripheral guide wire1

Superb Flexibility and Tip Durability

  • Shapeable nitinol tip retains shape throughout an entire procedure
  • 3 cm distal platinum radiopaque coils offer excellent visibility1

Wire and Tip Options

  • Tip load options of 2.8 g and 3.5 g
  • Guide wire lengths of 190 cm, 250 cm and 300 cm

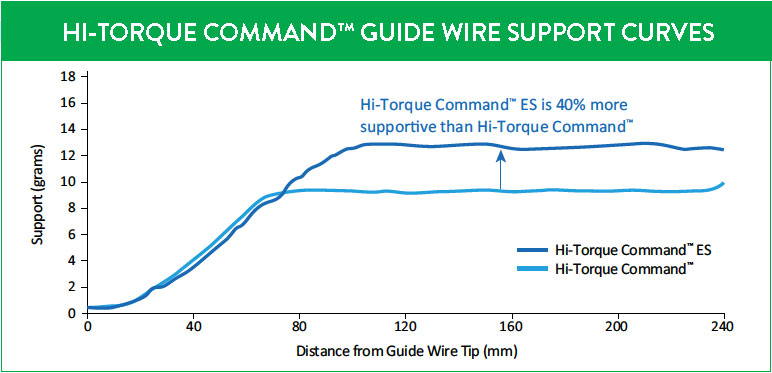

Support Profile For Hi-Torque Command™ Workhorse Peripheral Guide Wires

HI-TORQUE COMMAND™ FAMILY SUPPORT CURVES

Ordering information

Product Part Number Diameter Length Tip Style
Hi-Torque Command™ 2078172 0.014 in 190 cm Core-To-Tip
Hi-Torque Command™ 2078173 0.014 in 300 cm Core-To-Tip
Hi-Torque Command™ ES 2078174 0.014 in 190 cm Core-To-Tip
Hi-Torque Command™ ES 2078175 0.014 in 300 cm Core-To-Tip
Hi-Torque Command™ 2078176 0.014 in 250 cm Core-To-Tip
Hi-Torque Command™ ES 2078177 0.014 in 250 cm Core-To-Tip

Tests performed by and data on file at Abbott.

References

  1. Tóth GG, Yamane M, Heyndrickx GR. Heart. 2015;101:645–652.

MAT-2011245 v1.0
