XIENCE™ Family of Drug-Eluting Stents

The World's Leading Drug-Eluting Stents (DES), with Unparalleled Clinical Outcomes1

Xience Family

XIENCE™ Stent is the Gold Standard Among DES1

A wealth of clinical evidence supports the safety of XIENCE™ Stent, which has established a legacy as the Gold Standard1 in DES. Now optimized over 6 generations, XIENCE Skypoint™ Stent represents the latest generation in the consistently innovative XIENCE™ Family of Stents.


XIENCE™ Stent Safety Outcomes

XIENCE Skypoint™ Stent carries on the tradition of excellent XIENCE™ safety outcomes. The stent demonstrates consistency with optimal acute and early outcomes—in many types of patients and in complex lesions.

Types of Patients2-4Types of Lesions2-4
DiabeticCalcified Lesions
ComplexSide Brand Access
SimpleCTO
In all types of patients and lesion types, XIENCE Stent data reveals 0.3% acute definite ST.
In all types of patients and lesion types, XIENCE Stent achieved 99% device success.

The 99% device success rate was the lowest success rate noted, even among a range of patient types in multiple clinical trials.2

Lower Acute, Early Stent Thrombosis

XIENCE™ Stent has lower rates of acute and early ST than Synergy and Resolute DES.3,4

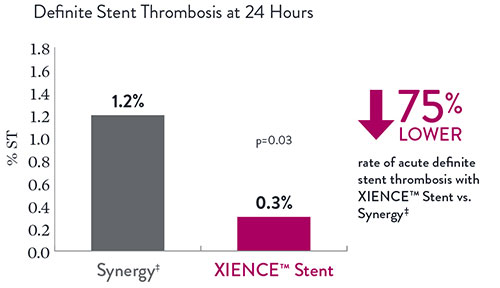

XIENCE™ Stent ST Rate Lower vs Synergy

There is a 75% lower rate of acute (24-hour) definite ST with XIENCE™ Stent vs Synergy.3

The rate of acute definite ST is 0.3% with XIENCE Stent and 1.2% with Synergy.
CARDIOBASE REGISTRY

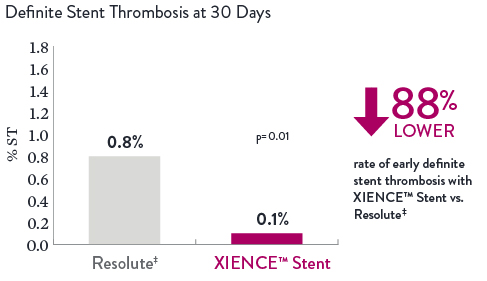

XIENCE™ Stent ST Rate Lower vs Resolute

There is an 88% lower rate of early (30-day) definite ST with XIENCE™ Stent vs Resolute.4

The rate of early (30-day) definite ST is 0.1% with XIENCE Stent and 0.8% with Resolute.
RESOLUTE All Comers

XIENCE™ Stent is Significantly More Thromboresistant Than Other DES5

Platelet adhesion is a key factor in stent thrombosis, and the XIENCE™ Stent’s unique, durable fluoropolymer was created to ensure long-term protection from thrombosis.

Preclinical testing confirms that the XIENCE™ Stent exhibits the least platelet adhesion compared to other DES (p < 0.01). This factor protects patients from short-term complications.5,6

XIENCE Stent has much lower platelet adhesion compared to Synergy, Orsiro, Ultimaster, Onyx, and BioFreedom drug-eluting stents

XIENCE™ Stent with 1-month or 3-month DAPT showed no increase in ischemic events with an observed reduction in bleeding in HBR patients.7

XIENCE 28 – 1-month DAPT in HBR Patients

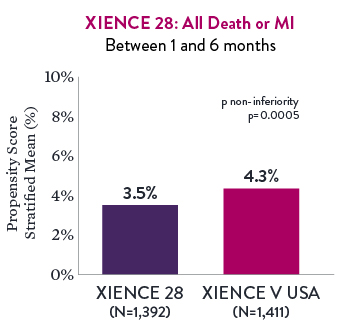

XIENCE 28: All Death or MI
Between 1 and 6 months

XIENCE 28: All Death or MI

XIENCE 90 – 3-month DAPT in HBR Patients

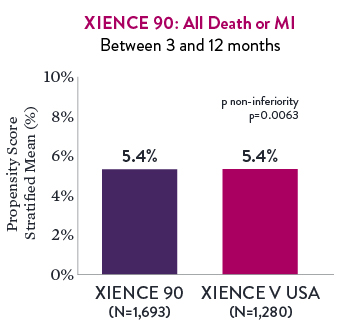

XIENCE 90: All Death or MI
Between 3 and 12 months

XIENCE 90: All Death or MI

NOTE: Antiplatelet drugs should be used in combination with the XIENCE stent, per the guidelines from the American College of Cardiology, American Heart Association, and Society for Cardiovascular Angiography and Interventions (ACC/AHA/SCAI). DAPT regimen is at the discretion of the physician and dependent on individual patient needs. Data from the short DAPT program, XIENCE 28, showed that 1-month DAPT (as short as 28 days) duration post-PCI is safe for HBR patients.



XIENCE 28 – 1-month DAPT in HBR Patients

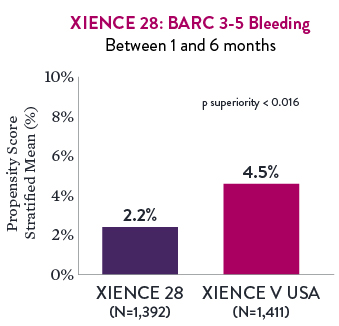

XIENCE 28: BARC 3-5 Bleeding
Between 1 and 6 months

XIENCE 28: BARC 3-5 Bleeding

XIENCE 90 – 3-month DAPT in HBR Patients

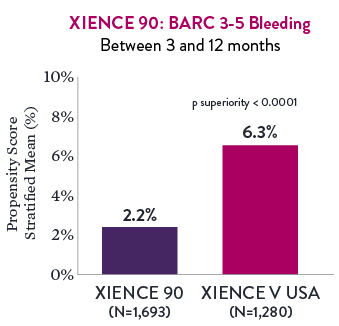

XIENCE 90: BARC 3-5 Bleeding
Between 3 and 12 months

XIENCE 90: BARC 3-5 Bleeding

NOTE: Antiplatelet drugs should be used in combination with the XIENCE stent, per the guidelines from the American College of Cardiology, American Heart Association, and Society for Cardiovascular Angiography and Interventions (ACC/AHA/SCAI). DAPT regimen is at the discretion of the physician and dependent on individual patient needs. Data from the short DAPT program, XIENCE 28, showed that 1-month DAPT (as short as 28 days) duration post-PCI is safe for HBR patients.

Manuals & Technical Resources

Manuals & Technical Resources

Order Cardiovascular Products

Cardiovascular Products

Customer Service

Customer Service

References

  1. Zanchin C, et al. JACC Cardiovasc Interv. 2019;12(17):1665-1675. Serruys P, et al. N Engl J Med. 2010;363:136-146. Shiomi H, et al. JACC Cardiovasc Interv. 2019;12:637-647. Kufner S, et al. Circulation. 2019:139(3):325-333. Palmerini T, et al. Lancet. 2013;379:1393-1402. Bangalore S, et al. Circulation. 2012;125:2873-2891. Bangalore S, et al. Circ Cardiovasc Interv. 2013;6(6):378-390. Pilgrim T, et al. Lancet. 2014;384:2111-2122. Pilgrim T, et al. Lancet. 2018;392:737-746. Data on file at Abbott.
  2. Saito S, et al. EuroIntervention. 2019;15(11):e1006-e1013. Saito S, et al. Eur Heart J. 2014;35:2021-2031. Natsuaki M, et al. J Am Coll Cardiol. 2013;62:181-190. Stone G, et al. Lancet. 2018;392:1530-1540. *Note: 99% was the lowest device success rate.
  3. Zanchin C, et al. JACC Cardiovasc Interv. 2019;12(17):1665-1675.
  4. Serruys P, et al. N Engl J Med. 2010;363:136-146.
  5. Sato Y, et al. Int J Cardiol. 2021;338:42-49. Pre-Clinical experiments performed by CV Path. Data on file at Abbott.
  6. Zanchin, C. et al. JACC Cardiovasc Interv. 2019;12(17):1665-1675. Kamberi M, et al. J Biomed Mater Res B Appl Biomater. 2018;106(5):1721-1729.
  7. XIENCE Skypoint™ Stent - Instructions for Use

MAT-2113769 v1.0

Important Safety Information


XIENCE Skypoint™, XIENCE Sierra™, XIENCE Alpine™ (XIENCE™ Family) Everolimus Eluting Coronary Stent Systems

rx-only-logo

Indications

Applies to XIENCE Skypoint™ Stent Systems:

  • Indicated for improving coronary artery luminal diameter in patients, including those with diabetes mellitus, with symptomatic heart disease due to de novo native coronary artery lesions ≤ 44 mm in length with reference vessel diameters of ≥ 2.25 mm to ≤ 5.25 mm and for high bleeding risk patients with coronary arteries lesions ≤ 32 mm in length with a reference vessel diameter of ≥ 2.25 mm and ≤ 5.25 mm.
  • Treating de novo chronic total coronary occlusions.

Applies to XIENCE Sierra™ and XIENCE Alpine™ Stent Systems:

  • Indicated for improving coronary artery luminal diameter in patients, including those at high risk for bleeding and those with diabetes mellitus, with symptomatic heart disease due to de novo native coronary artery lesions (length ≤ 32 mm) with reference vessel diameters of ≥ 2.25 mm to ≤ 4.25 mm.
  • Treating de novo chronic total coronary occlusions.


Contraindications

The XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems are contraindicated for use in:

  • Patients who cannot tolerate, including allergy or hypersensitivity to, procedural anticoagulation or the post-procedural antiplatelet regimen.
  • Patients with hypersensitivity or contraindication to everolimus or structurally-related compounds, or known hypersensitivity to stent components (cobalt, chromium, nickel, tungsten, methacrylic polymer, fluoropolymer), or with contrast hypersensitivity.


Warnings

  • Each stent and the delivery system are for single use only. Do not reuse, reprocess, or resterilize. Note the product “Use by” date on the package. Reuse, reprocessing, or resterilization may compromise the structural integrity of the device and / or delivery system and / or lead to device failure, which may result in patient injury, illness, or death. Reuse, reprocessing, or resterilization may also create a risk of contamination of the device and / or cause patient infection or cross-infection, including, but not limited to, the transmission of infectious disease(s) from one patient to another. Contamination of the device and / or delivery system may lead to injury, illness, or death of the patient.
  • It is not recommended to treat patients having a lesion that prevents complete inflation of an angioplasty balloon.
  • Antiplatelet therapy should be administered post-procedure.
  • This product should not be used in patients who are not likely to comply with the recommended antiplatelet therapy.
  • Judicious selection of patients is necessary, since the use of this device carries the associated risk of stent thrombosis, vascular complications, and/or bleeding events.
  • The XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems are coated with an everolimus and polymer coating at the full implant stent length. The distal and intermediate portions of the device, the tip, and tapers of the balloon are coated with HYDROCOAT™ Hydrophilic Coating.

Failure to abide by the warnings in this labeling might result in damage to the device coating, which may necessitate intervention or result in serious adverse events.


Precautions

  • Implantation of the stent should be performed only by the physicians who have received appropriate training.
  • Stent placement should be performed at centers where emergency coronary artery bypass graft surgery (CABG) can be readily performed.
  • When the XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems are used outside the specified Indications for Use, patient outcomes may differ from the results observed in the SPIRIT family of clinical trials. Compared to use within the specified indications for use, the use of the XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems in patients and lesions outside of the labeled indications, including more tortuous anatomy, may have an increased risk of adverse events, including stent thrombosis, stent embolization, MI, or death.
  • The extent of the patient’s exposure to drug and polymer is directly related to the number of stents implanted. See Instructions for Use for current data on multiple stent implantation.
  • Safety and effectiveness of the XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems have not been established for subject populations with the following clinical settings:
    • Patients with prior brachytherapy of the target lesion or the use of brachytherapy for treated site restenosis.
    • Conjunctive use of the XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems with either mechanical atherectomy devices or laser angioplasty catheters.
    • Women who are pregnant or lactating, men intending to father children, pediatric.
    • Unresolved vessel thrombus at the lesion site, coronary artery reference vessel diameters < 2.25 mm or > 4.25 mm, for XIENCE Skypoint™ < 2.25 mm or > 5.25 mm, or lesion lengths >44 mm, lesions located in saphenous vein grafts, lesions located in unprotected left main coronary artery, ostial lesions, or lesions located at a bifurcation or previously stented lesions, diffuse disease or poor flow (TIMI < 1) distal to the identified lesions, excessive tortuosity proximal to or within the lesion, recent Acute Myocardial Infarction (AMI) or evidence of thrombus in target vessel, multivessel disease, and in-stent restenosis.
  • Formal drug interaction studies have not been performed with the XIENCE Skypoint™, XIENCE Sierra™ or XIENCE Alpine™ Stent Systems because of limited exposure to everolimus eluted from XIENCE Skypoint™, XIENCE Sierra™ and XIENCE Alpine™ Stent Systems.
    • Everolimus, the active ingredient in the stents, is an immunosuppressive agent. Consideration should be given to patients taking other immunosuppressive agents or who are at risk for immune suppression.
    • Oral everolimus use in renal transplant and advanced renal cell carcinoma patients was associated with increased serum cholesterol and triglyceride levels, which in some cases required treatment.
    • Nonclinical testing has demonstrated that the XIENCE Sierra™ and XIENCE Alpine™ Stent Systems in single and in overlapped configurations up to 71 mm, for XIENCE Skypoint™ 91 mm in length, are MR Conditional. See Instructions for Use for detailed scanning conditions

Potential Adverse Events

Adverse events that may be associated with PCI treatment procedures and the use of a stent in native coronary arteries include, but are not limited to, the following:

  • Allergic reaction or hypersensitivity to latex, contrast agent anesthesia, device materials, and drug reactions to everolimus, anticoagulation, or antiplatelet drugs
  • Vascular access complications which may require transfusion or vessel repair, including: Catheter site reactions, Bleeding, Arteriovenous fistula; pseudoaneurysm, aneurysm, dissection, perforation/rupture, Embolism, Peripheral nerve injury, Peripheral ischemia
  • Coronary artery complications which may require additional intervention, including: Total occlusion or abrupt closure, Arteriovenous fistula, pseudoaneurysm, aneurysm, dissection. Perforation/rupture, Tissue prolapse/plaque shift, Embolism, Coronary or stent thrombosis, Stenosis or restenosis
  • Pericardial complications which may require additional intervention, including: Cardiac tamponade, Pericardial effusion, Pericarditis.
  • Cardiac arrhythmias
  • Cardiac ischemic conditions (including myocardial ischemia, myocardial infarction (including acute), coronary artery spasm, and unstable or stable angina pectoris)
  • Stroke/Cerebrovascular Accident (CVA) and Transient Ischemic Attack (TIA)
  • System organ failures: Cardio-respiratory arrest, Cardiac failure, Cardiopulmonary failure, Renal Insufficiency/failure, Shock
  • Bleeding
  • Blood cell disorders
  • Hypotension and/or hypertension
  • Infection
  • Nausea and vomiting
  • Palpitations
  • Dizziness
  • Syncope
  • Chest Pain
  • Fever
  • Pain
  • Death


The risks described below include the anticipated adverse events relevant for the cardiac population referenced in the contraindications, warnings and precaution sections of the everolimus labels / SmPCs and / or observed at incidences ≥ 10% in clinical trials with oral everolimus for different indications. Please refer to the drug SmPCs and labels for more detailed information and less frequent adverse events.

  • Abdominal pain
  • Anemia
  • Angioedema
  • Arterial Thrombotic Events
  • Bleeding and coagulopathy
  • Constipation
  • Cough
  • Diabetes mellitus
  • Diarrhea
  • Dyspnea
  • Embryo-fetal toxicity
  • Erythema
  • Erythroderma
  • Headache
  • Hepatic artery thrombosis
  • Hepatic disorders
  • Hypersensitivity to everolimus active substance, or to other rapamycin derivates
  • Hypertension
  • Infection (bacterial, fungal, viral or protozoan infections, including infections with opportunistic pathogens). Polyoma virus-associated nephropathy (PVAN), JC virus-associated progressive multiple leukoencephalopathy (PML), fatal infections and sepsis have been reported in patients treated with oral everolimus
  • Kidney arterial and venous thrombosis
  • Laboratory test alterations
  • Lymphoma and skin cancer
  • Male infertility
  • Menstrual irregularities
  • Nausea
  • Nephrotoxicity
  • Non-infectious pneumonitis
  • Oral ulcerations
  • Pain
  • Pancreatitis
  • Pericardial effusion
  • Peripheral edema
  • Pleural effusion
  • Pneumonia
  • Pyrexia
  • Rash
  • Renal Failure
  • Upper respiratory tract infection
  • Urinary tract infection
  • Venous thromboembolism
  • Vomiting
  • Wound healing complications

There may be other potential adverse events that are unforeseen at this time.

MAT-2100879 v7.0
