CentriMag Acute Mechanical Circulatory Support System

CentriMag Pre-Connected Pack



Experience the convenience of The CentriMag Pre-connected Pack. Driven by the Full MagLev Flow Technology of the CentriMag System, it combines convenience and patient safety for a comprehensive option for Cardiopulmonary Bypass (CPB).

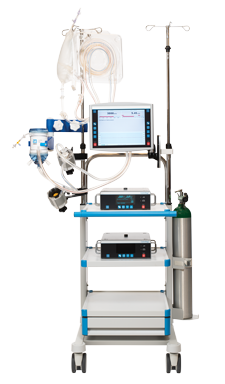

CentriMag Rack

Features and Benefits

  • Fast and efficient set-up and priming for quick initiation of support.
  • Reduced hemodilution with a low priming volume.
  • Capable of supporting blood flows up to 7 L/min.
  • All components of the circuit provided are sterile and disposable.

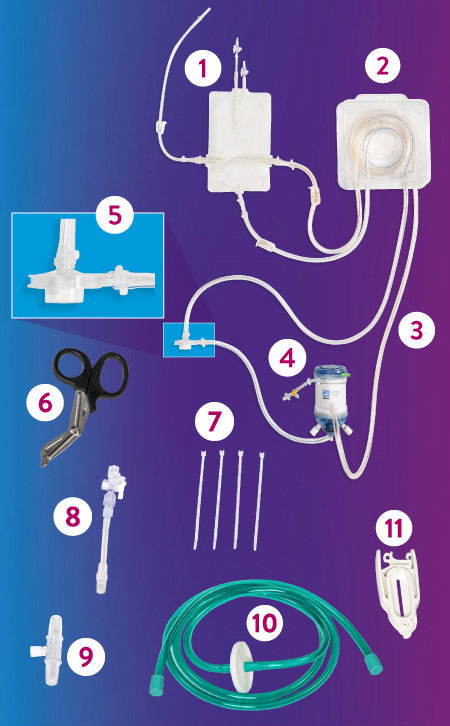

Pre-Connected Pack Diagram


This pack includes:

Circuit

  1. Priming Bag
  2. Tubing Tray
  3. PC Coated Tubing
  4. CentriMag Adult Oxygenator
  5. CentriMag Blood Pump

Accessories

  1. Cutter (1)
  2. Tie Bands (8)
  3. High-Flow Pigtails with 3-Way Stopcock (4)
  4. 3/8 Inch Connectors with Luer (2)
  5. Gas Line (1)
  6. Tubing Clamps (5)

Phosphorylcholine coated tubing, connectors and PMP fiber oxygenator.

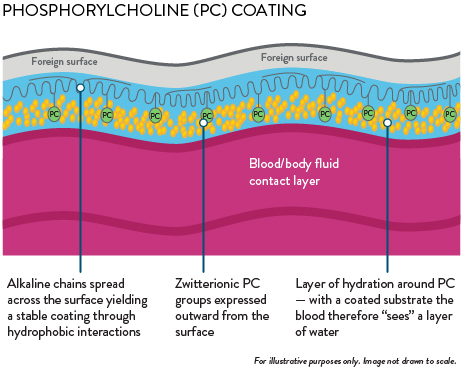

Blood path fully coated with phosphorylcholine (PC) coating

PC creates a permanent water barrier between blood and the oxygenator surface that minimizes thrombus formation and promotes resistance to bacterial adhesion.3

FPO

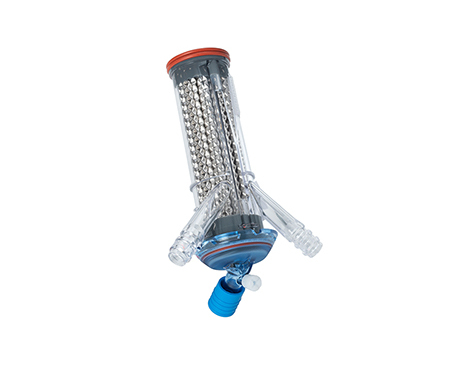

The CentriMag Adult Oxygenator also features an integrated stainless steel heat exchanger.

Integrated heat-exchanger maximizes heat exchange efficiency

The integrated heat exchanger is:

  • Made of stainless steel for high heat conductivity
  • Non-porous to eliminate risk of bacterial infection or any other potential contamination
  • Corrugated to increase surface area for efficient heat exchange
AMG PMP Oxygenator Integrated Stainless Steel Heat Exchanger

  • Manuals & Technical Resources
    Manuals & Technical Resources
  • Cardiovascular Products
    Cardiovascular Products
  • Customer Service
    Customer Service

INDICATIONS, SAFETY AND WARNINGS

CentriMag Pre-connected Pack Indications for Use [510(k) Clearance; 6-hour use]: The CentriMag Pre-connected Pack is indicated for use with the CentriMag Acute Circulatory Support System to provide physiologic gas exchange of the blood and to pump a patient's blood through an extracorporeal circuit for periods lasting less than six (6) hours for the purpose of providing either: (i) Full or partial cardiopulmonary bypass during open surgical procedures on the heart or great vessels; or (ii) Temporary circulatory bypass for diversion of flow around a planned disruption of the circulatory pathway necessary for open surgical procedures on the aorta or vena cava.

References

  1. Hayward JD, Champ D. Biomembrane surfaces as models for polymer design: the potential for haemocompatibility. Biomaterials. 1984;5:135-142.
  2. Goreish HH, Lewis Al, Rose S, et al. The effect of phosphorylcholine-coated materials on the inflammatory response and fibrous capsule formation: In vitro and in vivo observations. J Biomed Mater Res. 2004;68A:1-9.
  3. Berry JA, Biedlingmaier JF and Whelan PH. In Vitro Resistance to Bacterial Biofilm Formation on Coated Fluroplastic Tympanostomy Tubes. Otolaryngol Head Neck Surg. 2000;123:246-51.
