CentriMag Acute Mechanical Circulatory Support System

About the CentriMag Acute Circulatory Support System

Excellent hemocompatibility and unparalleled versatility for optimized patient care.



The CentriMag™ System is the only acute circulatory support system approved for 30-day LVAD, RVAD and BiVAD support. It offers freedom of choice and fits seamlessly into custom circuit designs, and can be used with a variety of cannulation options.

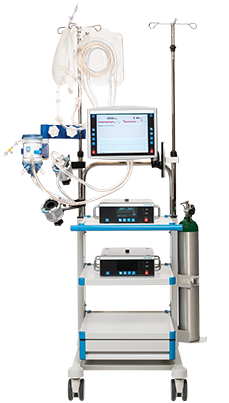

The CentriMag System for 30-day LVAD, RVAD and BiVAD support

Addressing the broadest spectrum of clinical challenges


The CentriMag blood pump functions as:

  • Part of an ECMO circuit for periods > 6 hours
  • Extracorporeal bypass circuit for periods up to 30 days*, to support the left, right, or both ventricles of the heart

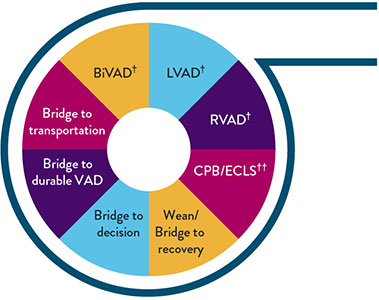

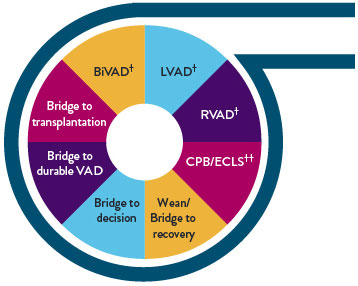

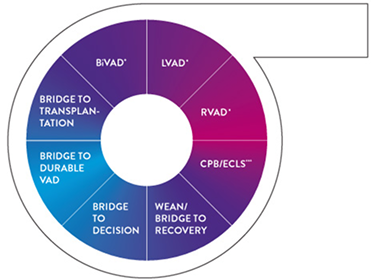

CentriMag Blood Pump Functions
Optimal Patient Care for a Variety of Applications

Designed for Optimal Hemocompatibility1,2

Driven by Full MagLev™ Flow Technology, the CentriMag and PediMag Pumps include a free-floating magnetically levitated rotor for a contact-free environment. This innovative technology results in excellent hemodynamics, which can lead to minimized blood stagnation, friction and shear stress.3,4

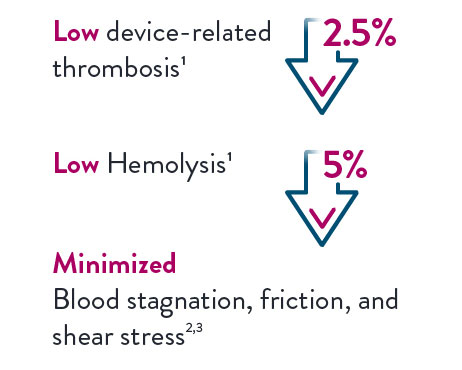

CentriMag Acute Mechanical Circulatory Support System Hemocompatibility

Reduced blood trauma,3 minimized turbulence, maintained stability

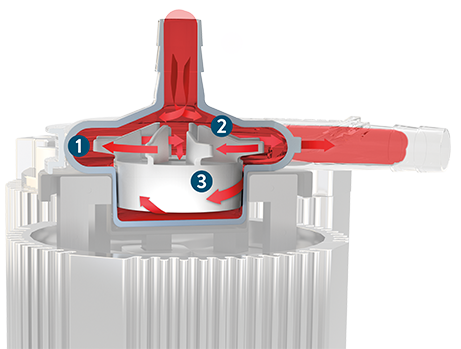

Full MagLev Flow Technology provides a contact-free environment that features:

  • A free-floating magnetically levitated rotor to prevent surface-to-surface contact that could cause blood trauma
  • Wide blood-flow pathways and absence of seals, bearings and valves to minimize blood turbulence and stasis
  • Automatic rotor positioning that adjusts 50,000 times per second to maintain stable and consistent blood flow

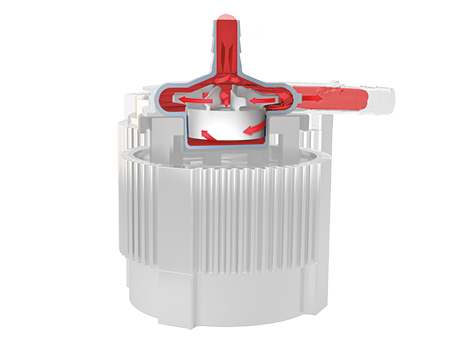

Full MagLev Flow Technology Reduces Blood Trauma

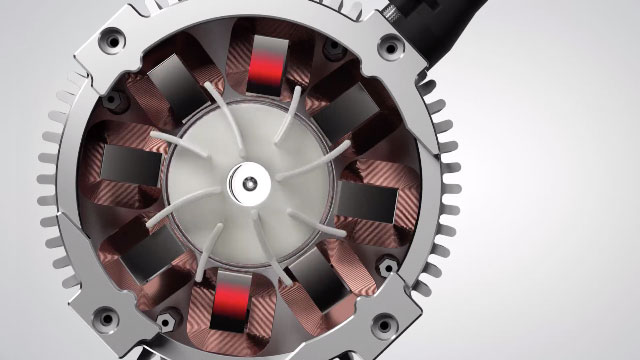

Watch this video to see the CentriMag Pump in action.

CentriMag Pump Video

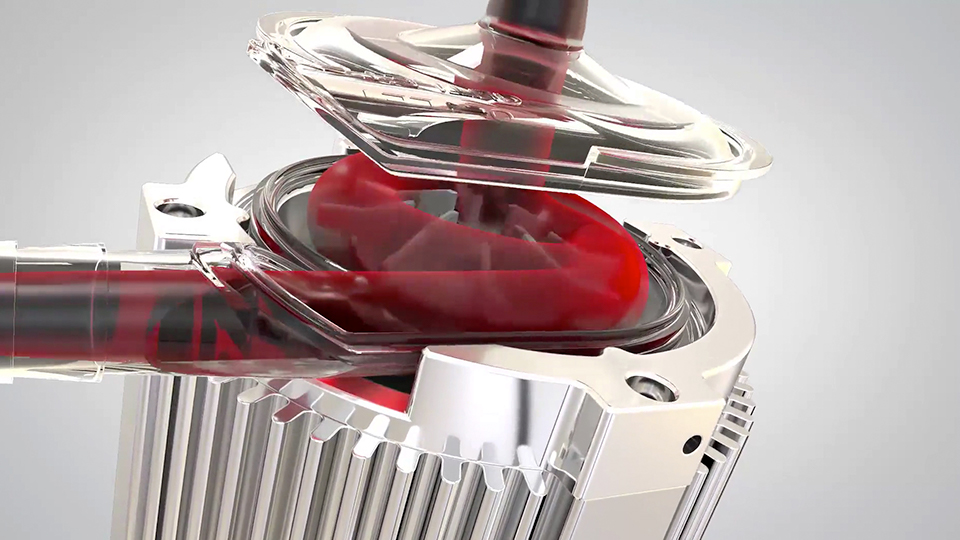

Watch this video to see how Full MagLev Flow Technology works.

Maglev Flow Technology Video

Trusted for a wide range of patient types and size



Produces flows of up to 10 LPM with fewer rotations per minute

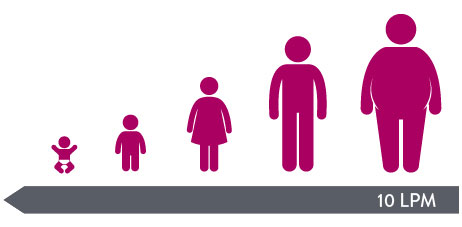

Adult and Pediatric Blood Pump Flow LPM Options

The CentriMag System includes both pediatric and adult pump options, producing flows up to 1.5 LPM for pediatric, and 10 LPM for adult.

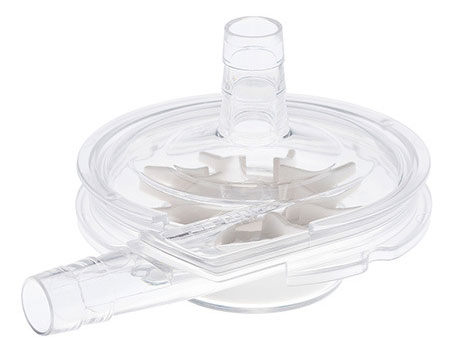

CentriMag Pump for Adults

CentriMag Pump

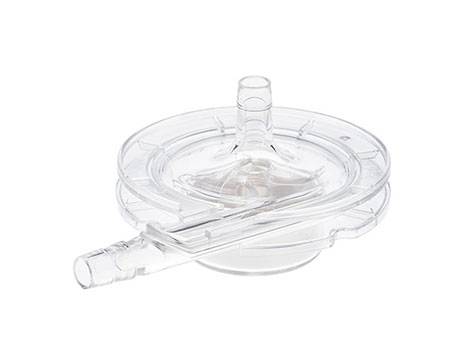

PediMag Pump for Pediatrics

PediMag Pump

  • Manuals & Technical Resources
    Manuals & Technical Resources
  • Cardiovascular Products
    Cardiovascular Products
  • Customer Service
    Customer Service

*PMA approval for 30-day use of CentriMag System components include: CentriMag™ Pump, CentriMag™ Console, CentriMag™ Motor, Mag Monitor, Flow Probe, and CentriMag™ Drainage Cannula and CentriMag™ Return Cannula. Optional accessories include: CentriMag™ System Cart, CentriMag™ System Transporter and Pressure Transducer. PMA approval for 30-day use of CentriMag™ System excludes: PediMag™ Blood Pump and any other pediatric components or accessories.
**ECMO clearance for >6-hour use is indicated for the CentriMag™ Blood Pump to be used with: CentriMag™ Console, CentriMag™ Motor, Mag Monitor, and Flow Probe. Optional accessories include: CentriMag™ System Cart, CentriMag™ System Transporter and Pressure Transducer. ECMO clearance for the CentriMag™ Blood Pump is for adult use only.
† Approved for 30-day use
†† Cleared for >6-hour use.

References

  1. John, R., Liao, K., Lietz, K., Kamdar, F., Colvin-Adams, M., Boyle, A., … Joyce, Lyle. (2007). Experience with the Levitronix CentriMag circulatory support system as a bridge to decision in patients with refractory acute cardiogenic shock and multisystem organ failure. The Journal of Thoracic and Cardiovascular Surgery, 134(2), 351-358. https://dx.doi.org/10.1016/j.jtcvs.2007.01.085
  2. John, R., Long, J. W., Massey, H. T., Griffith, B. P., Sun, B. C., Tector, A. J., … Joyce, L. D. (2011). Outcomes of a multicenter trial of the Levitronix CentriMag ventricular assist system for short-term circulatory support. The Journal of Thoracic and Cardiovascular Surgery, 141(4), 932-939. https://dx.doi.org/10.1016/j.jtcvs.2010.03.046
  3. Aziz, T. A., Singh, G., Popjes, E., Stephenson, E., Mulvey, S., Pae, W., & El-Banayosy, A. (2010). Initial experience with CentriMag extracorporeal membrane oxygenation for support of critically ill patients with refractory cardiogenic shock. The Journal of Heart and Lung Transplantation, 29(1), 66-71. https://dx.doi.org/10.1016/j.healun.2009.08.025
  4. Bhama, J. K., Kornos, R. L., Toyoda, Y., Teuteberg, J. J., McCurry, K. R., & Siegenthaler, M. P. (2009). Clinical experience using the Levitronix CentriMag system for temporary right ventricular mechanical circulatory support. The Journal of Heart and Lung Transformation, 28(9), 971-976. https://www.jhltonline.org/article/S1053-2498(09)00238-1/fulltext
  5. Takeda K, Garan AR, Ando M, et al. Minimally invasive CentriMag ventricular assist device support integrated with extracorporeal membrane oxygenation in cardiogenic shock patients: a comparison with conventional CentriMag biventricular support configuration. Eur J Cardio-Thorac Surg. 2017;52:1055-1061.
  6. Worku B, Pak S-W, van Patten D, et al. The CentriMag ventricular assist device in acute heart failure refractory to medical management. J Heart Lung Transplant. 2012;31:611-617.
  7. Takayama H, Soni L, Kalesan B, et al. Bridge-to-decision therapy with a continuous-flow external ventricular assist device in refractory cardiogenic shock of various causes. Circ Heart Fail. 2014;7:799-806.
