AVEIRTM AR and AVEIRTM VR

Atrial and Ventricular Single Chamber Leadless Pacemakers

Purple background image with a blue illustrated heart

Keeping hearts beating more regularly with the most advanced technologies

Harnessing the capabilities of leadless technology, two distinct devices - one for the right atrium and one for the right ventricle – can be implanted without chest incisions or pockets. Explore the streamlined implantation procedures for atrial and ventricular leadless pacing in the single chamber workflows below to gain a deeper understanding of these minimally invasive techniques.

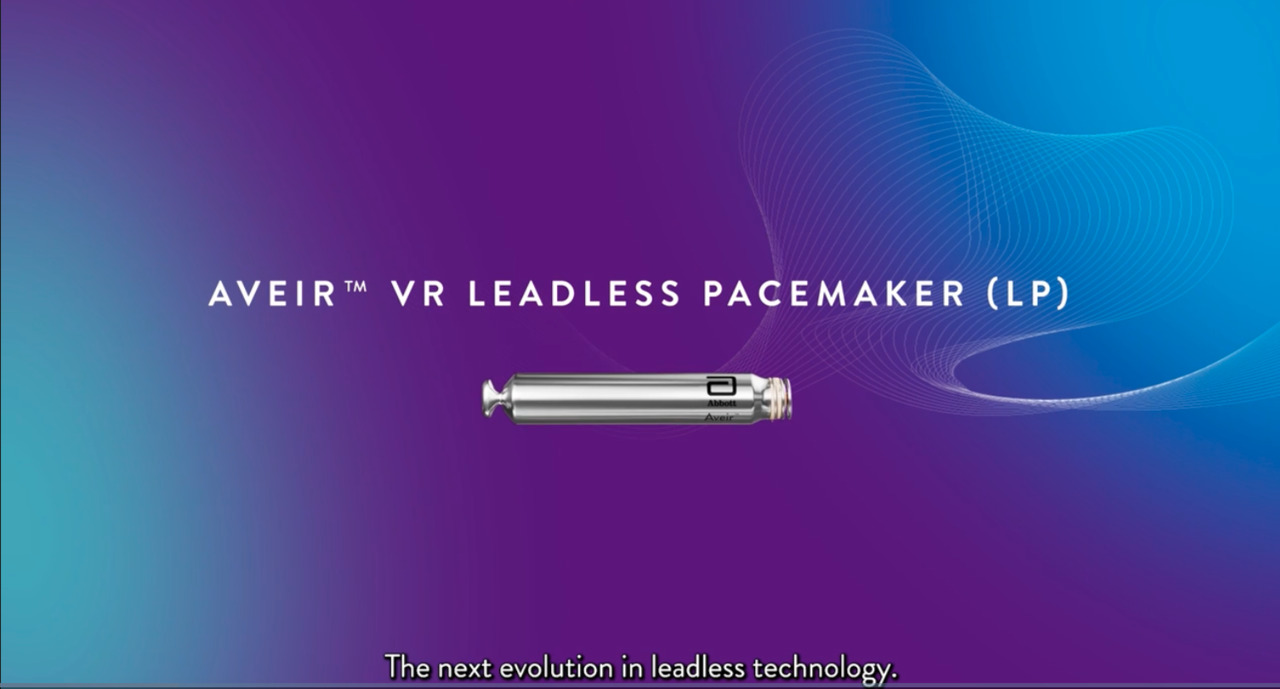

How the AVEIR VR Leadless Pacemaker is implanted1

Aveir Connect

CONNECT patient's skin electrodes to MerlinTM Programmer via the EKG cable and AVEIR Link Module.

Aveir Insert

INSERT catheter with attached ventricular pacemaker and navigate to right ventricle.

Aveir Map

MAP ventricular implanting location before fixation by touching endocardium with AVEIR VR Leadless Pacemaker's tip electrode.

Aveir Fixate

FIXATE the AVEIR VR Leadless Pacemaker to the ventricular endocardium using the screw-in mechanism.

Aveir Release

RELEASE the AVEIR VR Leadless Pacemaker and withdraw delivery catheter.



For a more detailed workflow, refer to the AVEIR VR Instructions for Use (IFU) or contact your Abbott Sales Representative for training.

How the AVEIR AR Leadless Pacemaker is implanted2

Aveir Connect

CONNECT patient's skin electrodes to MerlinTM Programmer via the EKG cable and AVEIR Link Module.

Aveir Insert

INSERT catheter with attached atrial pacemaker and navigate to right atrium.

Aveir Map

MAP atrial implanting location before fixation by touching endocardium with AVEIR AR Leadless Pacemaker's tip electrode.

Aveir Fixate

FIXATE the AVEIR AR Leadless Pacemaker to the atrial endocardium using the screw-in mechanism.

Aveir Release

RELEASE the AVEIR AR Leadless Pacemaker and withdraw delivery catheter.

Our Innovative Catheter Technology

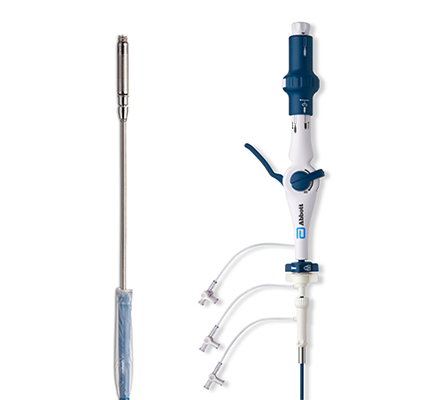

AVEIR Delivery and Retrieval Catheters

  • Designed for ergonomic, single operator use.

  • Steerable catheter with deflection mechanism.1

  • Hydrophilic coating on introducer sheath and a choice of 30cm and 50cm lengths.4

  • Protective sleeve fully covers the AVEIR Leadless Pacemaker's helix during catheter navigation in order to reduce the risk of damaging the helix or an injury to cardiovascular structures.1,3
catheter
catheter

Tri-loop snare re-docking mechanism

Retrieval Catheter Enables Long-Term Retrieval

  • AVEIR tri-loop snare re-docking mechanism enables retrieval of the Leadless Pacemaker.

  • AVEIR VR and AR Leadless Pacemakers' active fixation helix uses a screw-in mechanism to enable both implantation and long-term retrieval of the Leadless Pacemaker.1,5

  • The AVEIR VR Leadless Pacemaker's predicate device has an overall long-term retrieval success rate above 88% with helix fixation with up to 9 years of retrieval experience.5 AVEIR VR LP is designed for long-term retrieval. Limited data is available for AVEIR VR LP.

ENABLING SAFE MRI SCANS

AVEIR Leadless Pacemakers are MR Conditional for full body scans using a 1.5T or 3T strength MRI scanner.

AV

Partnering with You to Personalize Care

Sign up to hear about our technology, education opportunities, and more.

Read the Latest Blog Article

Stay up to date with recent news, product highlights, and case studies.

References



  1. AVEIR™ VR Leadless Pacemaker and Delivery Catheter IFU. ARTEN600175956
  2. AVEIR™ Leadless Pacemakers and Delivery Catheter IFU, ARTEN600284235
  3. AVEIR™ Retrieval Catheter IFU. ARTMT600174816
  4. AVEIR™ Introducer IFU. ARTEN600174817
  5. Reddy, VY, et al. Worldwide Experience with Leadless Pacemaker Retrievals at 9 years. Presented at 15th Asia Pacific Heart Rhythm Society (APHRS) Scientific Session; Nov 18-20, 2022; Singapore.

MAT-2115644 v9.0 | Item is approved for US use
