Diamondback 360 Coronary Orbital Atherectomy System

Clinical Trials

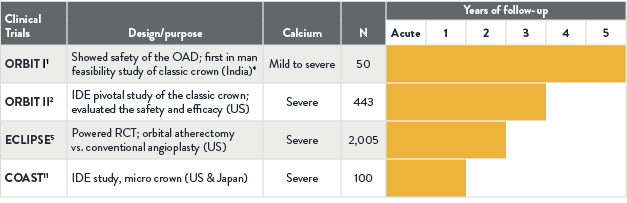

Clinical trials sponsored by legacy—CSI. Counts updated 07Jul2021—subject to change (includes ORBIT I, ORBIT II, COAST, Coronary Flow Reserve, and ECLIPSE).

*All ORBIT I subjects were followed for 6 months; 33 subjects were followed for 5 years at 1 institution.

ORBIT I1

The ORBIT I trial was a first-in-human prospective, non-randomized, multi-center, feasibility study that evaluated the safety, performance and effectiveness of OAS.

  • OAS is an effective tool for modifying calcified lesions to facilitate optimal stent placement.
  • ORBIT I reported high device success rate of 98% and a procedural success rate (defined as final residual stenosis of less than 20% after stenting) of 94%.

ORBIT II2

The ORBIT II pivotal trial was a prospective, multi-center study conducted in the U.S. that evaluated patients with severely calcified coronary lesions treated with Diamondback 360™ Coronary OAS prior to stent implantation.

  • ORBIT II met the primary safety and efficacy endpoints by a significant margin.2
  • ORBIT II demonstrated long term durable results with a low target lesion revascularization (TLR) rate of 3.4% at 1 year in the drug-eluting stent (DES) subset (N=389/443).4

Study Design2

  • 443 patients with severely calcified lesions were enrolled at 49 U.S. Sites
  • Designed to evaluate the safety and efficacy of the Diamondback 360™ Coronary OAS Classic Crown
  • Primary Safety Endpoint: Major adverse cardiac events (MACE) at 30 days
  • Primary Efficacy Endpoint: Procedural Success defined as success in facilitating stent delivery with a residual stenosis of <50% and without the occurrence of an in-hospital MACE

PATIENT POPULATION2

 N=443
History of Diabetes36.1%
History of CABG14.7%
History of Dyslipidemia91.9%
History of Hypertension91.6%
Smoker (current or previous)66.1%



STUDY RESULT2

Procedural Success88.9%
Successful Stent Delivery97.7%
Less than 50% Residual Stenosis98.6%
Freedom from in-hospital MACE90.2%



30-Day Outcomes3

Diamondback 360 OAS 30 Day Outcomes

1-Year Outcomes3

Diamondback 360 OAS 1-Year Outcomes

ECLIPSE5

The ECLIPSE trial was a prospective, randomized, multicenter trial designed to evaluate two different vessel preparation strategies in severely calcified coronary artery lesions.

  • Intravascular imaging guidance during PCI of severely calcified lesions was associated with improved 2-year clinical outcomes compared with angiography guidance alone, whether orbital atherectomy or conventional balloon angioplasty was used for vessel preparation prior to DES.6
  • Compared with conventional balloon angioplasty, calcium modification was greater in the orbital atherectomy group (greater number, total length, and maximal depth of calcium fractures), especially in lesions with thicker calcium.7

ECLIPSE Trial: A Closer Look

An interview with Dr. Ajay J. Kirtane, hosted by Dr. Ethan Korngold, CMO & DVP, Global Medical Affairs, Vascular, Abbott.

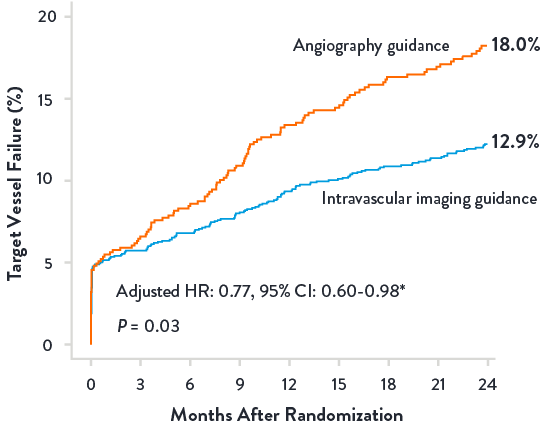

Imaging Substudy: TVF at 2 Years6

Imaging Substudy: TVF at 2 Years

*Adjusted for IVI vs. angiography guidance, baseline clinical variables (age, sex, diabetes, current smoker, prior PCI, prior CABG, prior MI, h/o PVD, eGFR, hemodialysis, and presentation with ACS), baseline core laboratory angiographic variables (# lesions treated, any LM or LAD treated, smallest RVD, smallest MLD, and max calcium length), and randomization to OA vs. BA, using inverse propensity score weighting with a robust variance estimator.

Calcium Fracture with OA Effect7

Calcium Fracture without OA Effect7

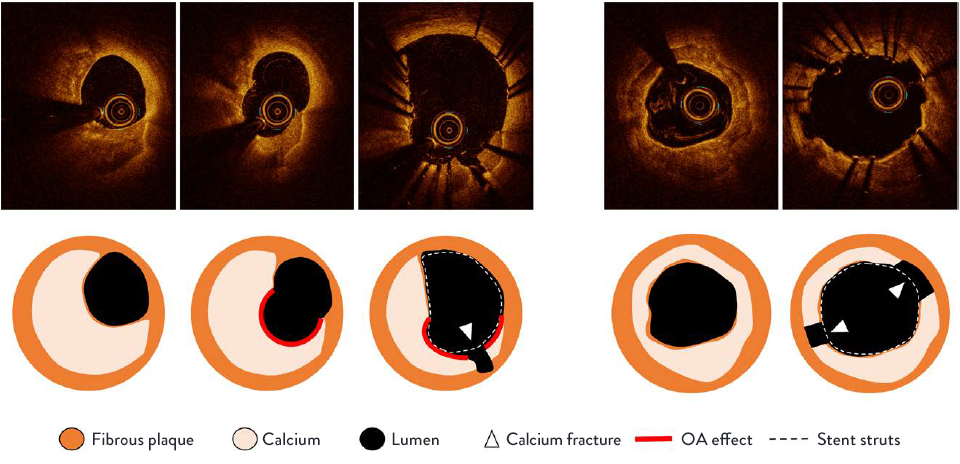

Calcium fracture with and without OA effect

Optical coherence tomography (OCT) appearance of calcium fracture with and without orbital atherectomy (OA) effect. Left, Calcium fracture with OA effect: the pre-percutaneous coronary intervention (pre-PCI) OCT image shows thick eccentric calcium. The post-OA image shows a round, concave-shaped calcium surface without a remaining fibrous cap, indicating OA calcium modification (red outline). The final post-stent image shows calcium fracture at the site of OA effect modification. Right, Calcium fracture without OA effect: The pre-PCI OCT image shows concentric calcium. No OA effect was observed on the final stent image. The final post-stent OCT shows 2 calcium fractures where the calcium thickness was thin.

Study Design

  • 2005 patients with 2492 lesions were randomly assigned to lesion preparation with orbital atherectomy (1008 patients with 1250 lesions) or balloon angioplasty (997 patients with 1242 lesions) before stent implantation.5
  • Patients selected for 1:1 randomization in ECLIPSE had severe calcium, primarily confirmed using angiography, and either orbital atherectomy or conventional balloon angioplasty were acceptable treatment options.8 Patients were excluded if the investigator felt the target lesion absolutely required atherectomy or was absolutely contraindicated for atherectomy.8
  • Intravascular imaging (IVI) guidance with either OCT or intravascular ultrasound (IVUS) during PCI per operator discretion was used in 1,246 patients (62.1%) (OCT in 819 and/or IVUS in 513).9

Learn more about how OCT-guided PCI improved procedural outcomes and safety results as demonstrated in ILUMIEN IV10

COAST11

The COAST trial was a prospective, multicenter, single-arm study that enrolled 100 patients with severely calcified de novo coronary lesions at 17 sites in the US and Japan.

Pre-stent preparation of severely calcified lesions using the novel Micro Crown OAS resulted in similar rates of procedural success and freedom from MACE compared with the Classic Crown OAS.
