Orbital Atherectomy Debulks and Fractures Calcium with One Device
Diamondback 360™ Precision Coronary Orbital Atherectomy System (OAS) safely debulks superficial calcium and fractures deeper calcium to optimize stent delivery, expansion and apposition.1-5
Calcium fracture with orbital atherectomy has been observed in several single center studies and case studies in various calcium morphologies and lesion types.2,3,6-8 Calcium modification by Diamondback 360™ Precision Coronary Orbital Atherectomy System (OAS) facilitates post-stent calcium fracture even in regions of thick calcium as assessed by Optical Coherence Tomography (OCT).2
Pre-OA
Post-OA
Post-Stent
Example: Pre-OA, post-OA, and post-stent. Post-OA shows characteristic calcium reduction at the white arrows, followed by calcium fracturing observed post-stent at the white arrows.
Images courtesy of Evan Shlofmitz, DO
Effect of Orbital Atherectomy in Calcified Coronary Artery Lesions as Assessed by Optical Coherence Tomography2

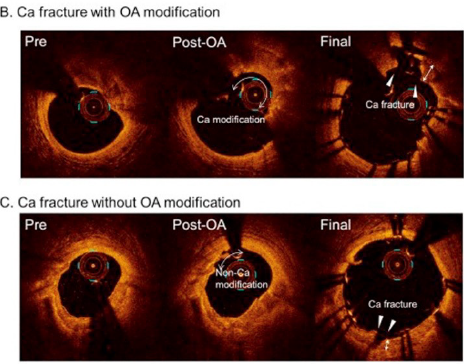

Calcium modification using OA facilitates post-stent calcium fracture even in areas with thick calcification, leading to improved stent expansion.
58 patients with calcific lesions treated with OA. OCT performed pre-procedure, post-OA and post-stent. Fracture defined as complete discontinuity of calcium.
- 60% of lesions exhibit post-stent calcium fracture.
- Fracture most prevalent (90%) in upper tertile lesions (with greatest calcium arc and thickness).
- The presence of calcium fracture was an independent predictor of optimal stent expansion.
Authors' conclusions: Modification of calcium using OA promotes post-stent calcium fracture, including in areas with thick calcification as assessed via OCT. Increased calcium modification is associated with more extensive fracturing, which subsequently facilitates stent expansion.

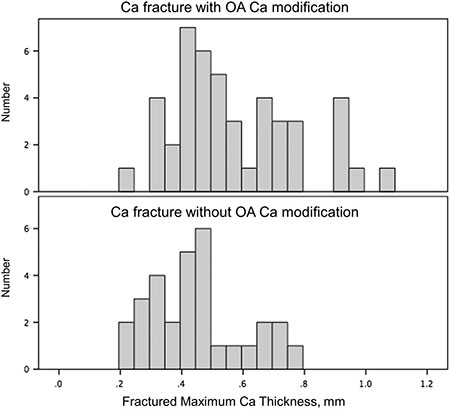

Upper panels show the distribution of maximum fractured calcium thickness with OA calcium modification. The lower panel shows the distribution of maximum fractured calcium thickness without OA calcium modification. Calcium fracture modified by OA was observed in thicker calcium than those without modification by OA.
Initial Experience with Orbital Atherectomy in a Tertiary Centre in the Netherlands6
Experience with OA in heavily calcified coronary lesions showed effective debulking and plaque modification, accompanied by high procedural success and clinical safety.
29 patients with 39 severely calcified lesions treated with OA. OCT and/or IVUS performed pre-OA, post-OA, and post-stenting. (Fracture not defined.)
- Superficial sanding of calcium in 90% of lesions.
- Fracturing of deeper medial calcium in 63% of lesions.
- OA appeared to be particularly effective in the ablation of calcified nodules, with 94% of nodules being removed.
Authors' conclusions: OA modifies coronary calcium by sanding and fracturing both superficial and deeper medial calcium. Mechanistically, combining rotational atherectomy (RA) with intravascular lithotripsy (IVL) may offer more complementary benefits than pairing OA with IVL. This is because RA does not effectively target deeper medial calcium, which IVL can subsequently address. In contrast, OA’s orbital motion allows it to reach and modify deeper calcium, potentially reducing the need for IVL. Additionally, OA demonstrated complete elimination of calcified nodules—possibly due to reduced guidewire bias compared to RA.

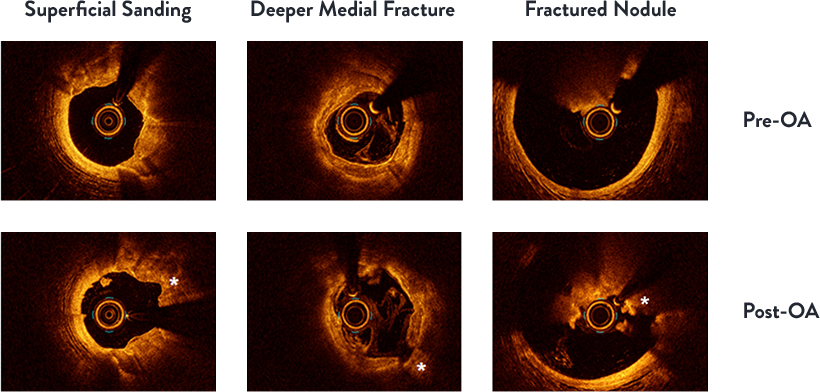

Example of superficial sanding, medial calcium fracture and fractured calcified nodule. Asterisks indicate the different modification patterns of OA.
Optical Coherence Tomography Assessment of the Mechanistic Effects of Rotational and Orbital Atherectomy in Severely Calcified Coronary Lesions3
Despite similar dissection rates, OA achieves deeper tissue modifications than RA, potentially leading to improved stent apposition.
20 consecutive patients treated with OA (10) or RA (10). OCT performed post-atherectomy and post-stent. Calcium dissection (fracture) was defined as a disruption of the arterial lumen surface seen in at least 2 consecutive cross-section images.
Authors' conclusions: While the rate of dissections was similar between RA and OA procedures, OA led to deeper tissue modifications visible by OCT imaging. This may help explain a better stent apposition after OA relative to RA. Further research is needed to understand the implications for long-term outcomes.
Type I
Type II
Type III
OCT findings after atherectomy in calcified de novo lesions. Representative OCT images and measurements for different types of post atherectomy tissue modification (TM):
- Type I-nodules, or superficial intimal flaps with smooth luminal border (A, B).
- Type II-post RA fissures (C) and post OA gutters (D), deep intimal cuts with irregular intima-lumen interface (asterisks).
- Type III-post RA craters (E) and post OA lacunae (F), deep intimal-medial dissections with noncylindrical lumen (asterisks).
White lines and numbers show nodules length in (A, B) and the depth of the fissures (C), gutters (D), craters (E), and lacunae (F).
Note: The study by Kini et al. included cases with moderate to severe coronary calcium. The Diamondback 360™ Coronary Orbital Atherectomy System is not indicated for moderate calcium. The findings from this article should be interpreted in the context of the other studies presented on this page.
Case Study Examples of Calcium Fracture with Orbital Atherectomy

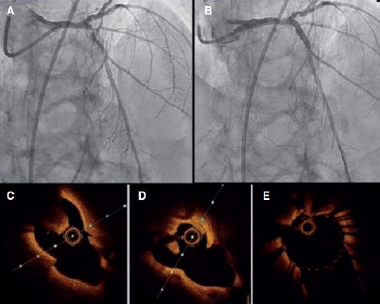

Orbital Atherectomy for Calcified Nodule: Optical Coherence Tomography Assessment7
OCT revealed an arc of calcium >180°, thickness of 0.6 mm, and length > 5 mm with a calcified nodule with a minimum lumen area of 3.49 mm2 (C). OA was selected to prepare the lesion. After 5 runs at low speed (80 000 rpm), a new OCT was performed that confirmed the fracture of the calcified nodule achieving a minimum lumen area of 7.5 mm2 (D). Both the post-stenting final coronary angiogram (B) and the OCT pullbacks confirmed the homogeneous expansion.

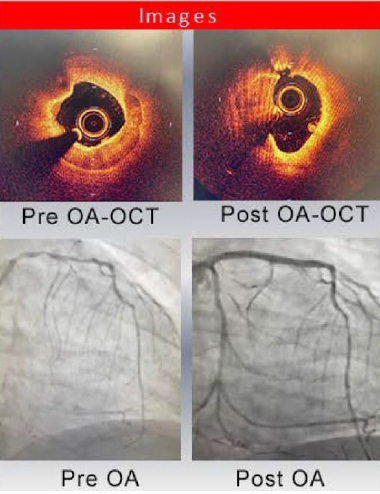

Observational Study Evaluating the Efficacy of Orbital Atherectomy in Treating Calcified Coronary Lesions8
20 patients with severely calcified lesions (≥180°). In all patients, OCT confirmed fracture of both superficial and deep calcium (defined as fissures, craters, and in some typical smooth concave ablation).
References
- Shlofmitz E, Martinsen BJ, Lee M, et al. Orbital Atherectomy for the Treatment of Severely Calcified Lesions: Evidence, Technique, and Best Practices. Expert Rev Med Devices. 2017;14(11):867-879.
- Yamamoto MH, Maehara A, Kim SS, et al. Effect of Orbital Atherectomy in Calcified Coronary Artery Lesions as Assessed by Optical Coherence Tomography. Catheter Cardiovasc Interv. 2019;93(7):1211-1218.
- Kini AS, Vengrenyuk Y, Pena J, et al. Optical Coherence Tomography Assessment of the Mechanistic Effects of Rotational and Orbital Atherectomy in Severely Calcified Coronary Lesions. Catheter Cardiovasc Interv. 2015;86(6):1024-1032.
- Shlofmitz E, Jeremias A, Shlofmitz R, Ali ZA. Lesion Preparation with Orbital Atherectomy. Interv Cardiol. 2019;14(3):169-173.
- Yamamoto MH, Maehara A, Karimi Galougahi K, et al. Mechanisms of Orbital Versus Rotational Atherectomy Plaque Modification in Severely Calcified Lesions Assessed by Optical Coherence Tomography. JACC Cardiovasc Interv. 2017;10(24):2584-2586.
- den Dekker WK, Siskos AA, Wilschut JM, et al. Initial Experience with Orbital Atherectomy in a Tertiary Centre in the Netherlands. Neth Heart J. 2023:31(5):196–201.
- Abellas-Sequeiros M, Sanchez-Recalde A, Sanz A, et al. Orbital Atherectomy for Calcified Nodule: Optical Coherence Tomography Assessment. REC Interv Cardiol. 2022;4:163-164.
- Ayat Y, Kessler K, Avula S. Observational Study Evaluating the Efficacy of Orbital Atherectomy in Treating Calcified Coronary Lesions. Presented at EuroPCR 2021.
