Emboshield NAV6™ Embolic
Protection System

Excellent Outcomes: Emboshield NAV6™ EPS Clinical Data

Embolic Protection Devices can add a layer of protection during endovascular procedures in the lower extremities or carotids. In the lower extremities, downstream complications can be minimized and in the carotids, the stroke rate can be reduced with the use of EPDs.1

Clinical Findings in Brief

Three trials evaluated carotid stenting with the Emboshield NAV6™ EPS and/or previous generation Abbott products.

  • ACT IAsymptomatic Carotid Trial I
  • CHOICECarotid Stenting for High Surgical-Risk Patients; Evaluating Outcomes Through the CollectIon of Clinical Evidence
  • Protect: Protected Carotid Artery Stenting in Patients at High Risk for Carotid Endarterectomy (CEA)
Summary of Clinical Trial Data for Emboshield NAV6™ Embolic Protection System
(N = 1,453; Carotid Stenting N = 1,089)
Asymptomatic Patients at Standard Risk for CEA
(N = 17,925)
Symptomatic and Asymptomatic Patients at High Risk for CEA
(N = 220)
Symptomatic and Asymptomatic Patients at High Risk for CEA
(30 Days)
(30 Days)
Death or Major Stroke
(30 Days)
Freedom from Ipsilateral Stroke97.8%
(30 Days – 5 Years)
Not evaluated98.8%
(31 Days – 3 Years)


DS = Death or stroke | DSMI = Death, stroke, or myocardial infarction | CEA = Carotid endarterectomy

ACT I Trial5

The primary aim of this prospective, multicenter trial was to compare the outcomes of stenting with embolic protection vs carotid endarterectomy.


The 1,453 patients were randomly assigned to the stenting group (n = 1,089) or the CEA group (n = 364), all of whom met the following criteria:

  • Asymptomatic, severe (> 70%) carotid stenosis
  • ≤ 79 years of age
  • Standard risk for CEA surgical complications


ACT I Trial
 Carotid Artery Stenting (CAS)Carotid Endarterectomy
Primary composite endpoint: DSMI (at 30 days) and ipsilateral stroke (31 days - 1 year)3.8%3.4%
Freedom from ipsilateral stroke (31 days - 5 years)97.8%97.3%
Freedom from clinically driven revascularization (5 years, p = 0.05)98.4%96.7%
5 year survival87.1%89.4%


The authors concluded that:

  • There were no significant differences in long-term (5-year) rates of stroke and survival between the two groups in this large randomized trial.2
  • CAS was found to be noninferior to CEA for the primary composite end point: DSMI within 30 days; or ipsilateral stroke within 1 year post procedure.2


With 17,925 patients evaluated, the CHOICE trial represents the largest prospective, single-arm, adjudicated, multicenter CAS data set to date. The CHOICE study also provided additional post-market surveillance of RX Acculink™ Carotid Stent System and Abbott’s embolic protection systems.


Patient criteria included:

  • Severe stenosis of ≥ 50% for symptomatic patients and ≥ 80% for asymptomatic patients
  • High surgical risk for CEA

There were other notable aspects of the patient population:

  • 22.6% who were age ≥ 80
  • 24.4% who had heavy calcification at the target site


The 30-day findings included:

 All Patients
(N = 17,925)
Patients Age < 80
(N = 13,868)
Death or major stroke1.4%1.1%


The investigators concluded that CAS is a viable option for patients at high risk for CEA. In addition, favorable outcomes were observed in patients < 80 years of age.

The investigators concluded that CAS is a viable option for patients at high risk for CEA. In addition, favorable outcomes were observed in patients < 80 years of age.


Investigators undertook the PROTECT trial (n = 220) in an effort to evaluate the outcomes with improved device technology.


The PROTECT trial included only patients at high surgical risk for CEA, and severe stenosis:

  • ≥ 50% for symptomatic patients
  • ≥ 80% for asymptomatic patients


DS (30 days)1.8%
DSMI (30 days)2.3%
Death or Major Stroke (30 days)0.5%
Freedom from Ipsilateral Stroke (31 days – 3 years)98.8%


These data reveal improved outcomes compared to earlier high-risk CAS trials.

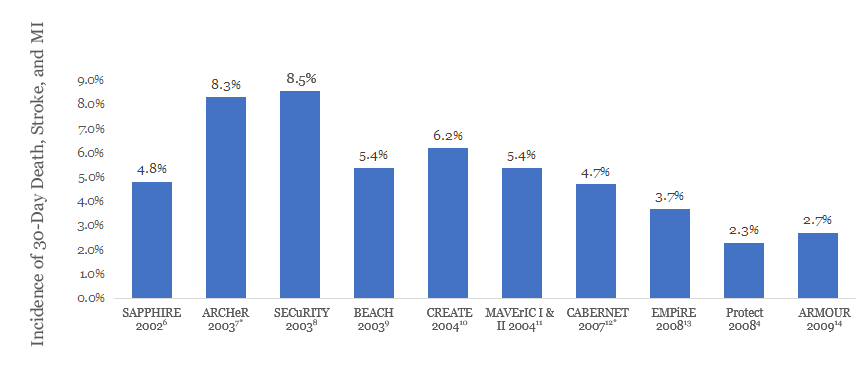

PROTECT Trial: Lower DSMI Rate Outcomes vs Other High Risk Carotid IDE Trials

PROTECT, with Abbott EPS: lower DSMI vs other trials

NOTE: Results from clinical trials are not directly comparable. Information provided for educational purposes only.

  1. Banerjee A, Sarode K, Mohammad A, et al. Safety and Effectiveness of the Nav-6 Filter in Preventing Distal Embolization During Jetstream Atherectomy of Infrainguinal Peripheral Artery Lesions. J Invasive Cardiol. 2016;28(8):330-333.
  2. Rosenfield K, Matsumura JS, Chaturvedi S, et al. Randomized trial of stent versus surgery for asymptomatic carotid stenosis. N Engl J Med. 2016;374(11):1011-1120.
  3. Metzger DC. The CHOICE prospective trial: carotid stenting in a post-market setting. VIVA 2013.
  4. Matsumura JS, Gray W, Chaturvedi S, et al. Results of carotid artery stenting with distal embolic protection with improved systems: Protected Carotid Artery Stenting in Patients at High Risk for Carotid Endarterectomy (PROTECT) trial. J Vasc Surg. 2012; 55(4):968-976.e5.
  5. Wechsler, LR. Asymptomatic Carotid Stenosis Stenting v. Endarterectomy Trial (ACT I). ISC 2016.
  6. Yadav et al. Protected carotid-artery stenting versus endarterectomy in high-risk patients. N Engl J Med. 2004;351:1493-501.
  7. Gray et al. Protected carotid stenting in high-surgical-risk patients: The ARCHeR results. JVS 2006;44(2) 258-68.
  8. Xact Carotid™ Stent System Instructions for Use (IFU). Refer to IFU for additional information.
  9. Iyer et al. Carotid artery revascularization in high-surgical-risk patients using the Carotid WALLSTENT and FilterWire EX/EZ: 1-year outcomes in the BEACH Pivotal Group. J Am Coll Cardiol. 2008 Jan 29;51(4):427-34
  10. Safian et al. Protected carotid stenting in high-risk patients with severe carotid artery stenosis. J Am Coll Cardiol. 2006;47:2384-2389.
  11. Higashida et al. Evaluation of the Medtronic Exponent Self-Expanding Carotid Stent System With the Medtronic Guardwire Temporary Occlusion and Aspiration System in the Treatment of Carotid Stenosis. Stroke. 2010 Feb;41(2):e102-9.
  12. Hopkins et al. Carotid artery revascularisation in high-surgical-risk patients with the NexStent and the FilterWire EX/EZ: 3-year results from the CABERNET trial. EuroIntervention. 2010;5:917-924.
  13. Clair et al. Neuroprotection during carotid artery stenting using the GORE flow reversal system: 30-day outcomes in the EMPiRE Clinical Study. Catheter Cardiovasc Interv. 2011 Feb 15;77(3):420-9.
  14. Ansel et al. Safety and effectiveness of the INVATEC MO.MA proximal cerebral protection device during carotid artery stenting: results from the ARMOUR pivotal trial. Catheter Cardiovasc Interv. 2010;76:1-8.

* 30-day death, stroke, and MI plus late (31–365 days) ipsilateral stroke
