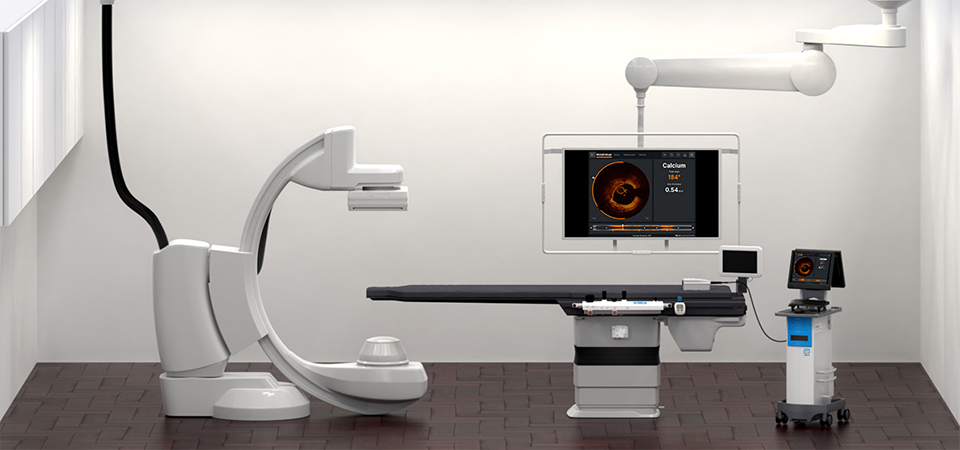

OPTIS™ Next Imaging Systems

OPTIS™ Integrated Next Imaging System and OPTIS™ Mobile Next Imaging System are the newest generation of Abbott’s imaging systems that are available with Ultreon 1.0 Software. Streamlined and intuitive, Ultreon™ 1.0 Software gives better insights to optimize patient outcomes through automation and an improved workflow.1-4 The OPTIS™ Next Systems use high-powered processors that support AI technology for faster information display and workflow efficiency.

OPTIS™ Integrated Next Imaging System: It's always on, it's always ready

OPTIS™ Integrated Next System is installed in a single cath lab; it's always on and always ready to perform intravascular imaging and coronary physiology.

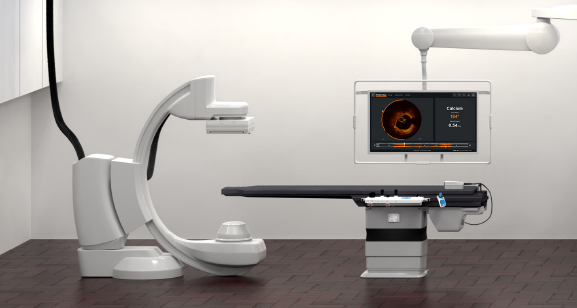

OPTIS™ Integrated Next Imaging System set up
OPTIS™ Integrated Next Imaging System set up. Components shown include Wi-Box™ AO Transmitter, DOC, TSC, and OCT user interface display on the Boom Monitor.

OPTIS™ Integrated Next System provides benefits to the physicians:

  • Save setup time and start the PCI procedure right away because the system is always on and ready to use
  • Provides the user with a wireless tableside control (TSC) of OCT and RFR/FFR acquisition and review at a procedure table. The TSC also allows for single-operator control of the procedure if needed.
  • Streamlines the PCI procedure by having OCT and coronary physiology always available to guide PCI decision-making
  • Compatible with Dragonfly OpStar™ Imaging Catheter, Dragonfly™ OPTIS Imaging Catheter


Consideration for use:

The OPTIS™ Integrated Next System is the latest integrated imaging system that supports Ultreon™ 1.0 Software. It is recommended for imaging and physiology needs, for busy cath labs and high PCI volume centers when the availability of OCT and/or coronary physiology is always needed without advanced arrangements.

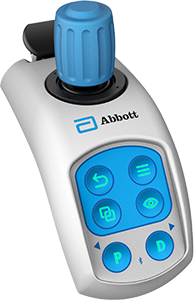

OPTIS™ Tableside Controller Next for OPTIS™ Integrated Next System
OPTIS™ Tableside Controller Next (TSC)

OPTIS™ Mobile Next Imaging System: flexibility for multiple cath labs

OPTIS™ Mobile Next Imaging System is a transportable system designed for use in multiple cath labs with easy pre-installed connections.

Abbott’s OPTIS™ Mobile Next Imaging System set up
OPTIS™ Mobile Next Imaging System set up with an added QUANTIEN™ Measurement System on the table side. Components shown include Wi-Box™ AO Transmitter, DOC, TSC, and OCT user interface display on the Boom monitor

The OPTIS™ Mobile Next System provides the same functionality as the OPTIS™ Integrated Next System, but provides mobile system workflow via an easily transportable cart to serve multiple cath labs.

  • Integrates into the cath lab via easy pre-installed connections
  • Accommodates staggered PCI procedures at different times or on different days
  • One transportable cart to support PCI in multiple cath labs
  • Compatible with Dragonfly OpStar™ Imaging Catheter, Dragonfly OPTIS™ Imaging Catheter


Consideration for use:

The OPTIS™ Mobile Next Imaging System is the latest mobile imaging system that supports Ultreon™ 1.0 Software. It is recommended for multiple cath labs that require flexibliity or for busy cath labs that already have an OPTIS™ Integrated Next Imaging System and need an additional system as a back up.

References

Refer to Instructions For Use (IFU) for additional information.

  1. Ultreon™ 1.0 Software Claims Memo.
  2. Zhang J, et al. Intravascular ultrasound versus angiography-guided drug-eluting stent implantation: the ULTIMATE trial. J Am Coll Cardiol. 2018;72(24):3126-3137.
  3. Hong M et al., IVUS-XPL 5 Year Outcomes, TCT 2019.
  4. Jones et al. JACC Cardiovascular Interventions, 2018, vol 11 (14). “Angiography Alone Versus Angiography Plus Optical Coherence Tomography to Guide Percutaneous Coronary Intervention – Outcomes From the Pan-London PCI Cohort”.

MAT-2104279 v1.0
