Flexible Installation Options

The CoroFlow Cardiovascular System, with touch screen usability, can be installed on hospital-owned PCs or delivered on preconfigured platforms. Pre-configured platforms include an integrated workstation and a mobile battery powered cart.

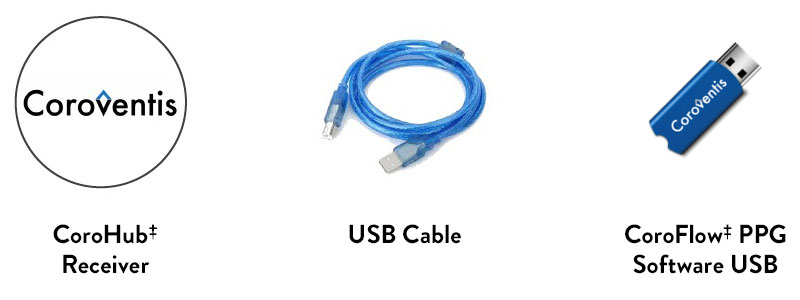

CoroFlow Cardiovascular System Only

Coroventis‡ CoroHub‡ System software only
  • CoroHub Receiver
  • USB Cable
  • CoroFlow Software + CoroHub Drivers
  • Remote with USB Receiver + Batteries

What's provided: Coroventis System only; hospital provides PC

Advantages: No additional control room/cath lab space needed

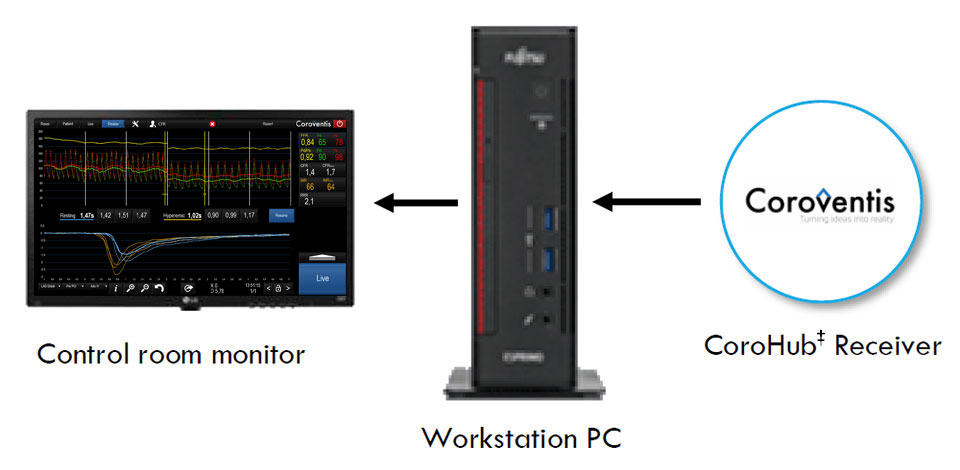

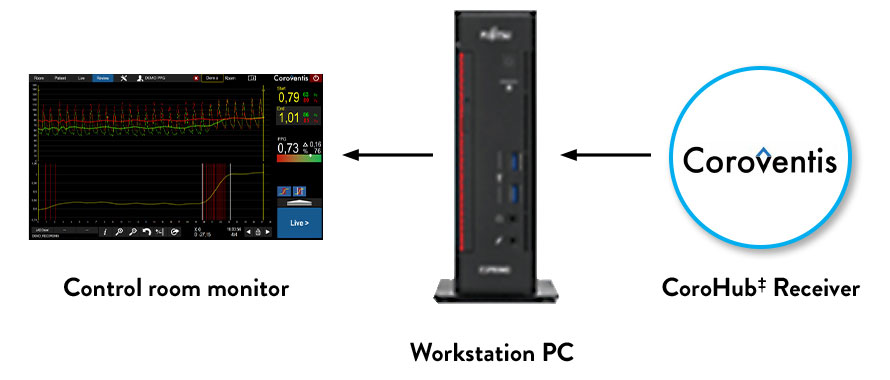

CoroFlow Cardiovascular System + Micro PC workstation

Coroventis‡ CoroHub‡ System plus micro PC
  • Control Room Monitor
  • Micro PC installed with CoroFlow‡ Software
  • CoroHub Receiver

What's provided: Micro PC that comes installed with software

Advantages: Fully "integrated" into control room/cath lab

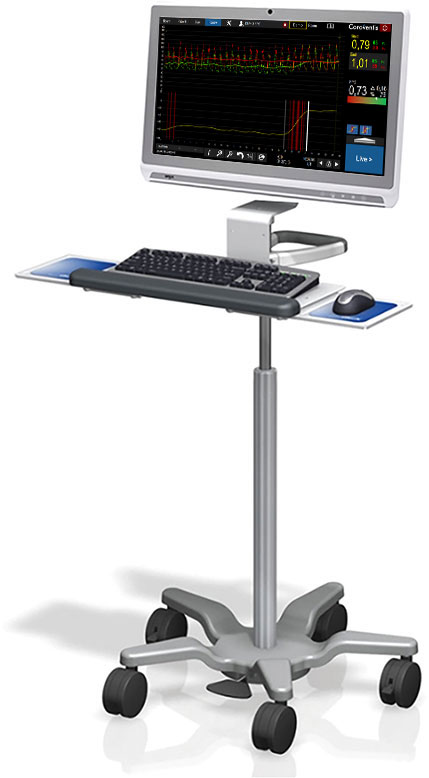

CoroFlow Cardiovascular System + Mobile Touch Screen PC

Coroventis‡ CoroHub‡ System with mobile cart for use in multiple rooms
  • Cart PC installed with CoroFlow‡ Software
  • CoroHub Receiver
  • Mobile Cart Stand

What's provided: Mobile cart and PC that comes installed with software

Advantages: Supports multiple cath labs with a touch interface

Minimal PC Requirements

The minimum PC requirements include:
CPU: Intel Core i5 or higher
Ports: 2 Free USB 2.0 ports
Operating system: Windows 10
Screen: Full HD (1920 x 1080)
Optional access to shared network drive or Cloud allows for centralized data storage

Refer to Instructions For Use (IFU) for additional information.

References

  1. Data on file at Abbott;
  2. Ford TJ, Stanley B, Sidik N, et al. 1-year outcomes of angina management guided by invasive coronary function testing (CorMicA). JACC Intv. 2020; 13:33-45.
  3. Pijls NH, Fearon WF, Tonino PA, et al. Fractional Flow Reserve Versus Angiography for Guiding Percutaneous Coronary Intervention in Patients with Multivessel Coronary Artery Disease. 2-Year Follow-Up of the FAME (Fractional Flow Reserve Versus Angiography for Multivessel Evaluation) Study. JACC. 2010; 56(3): 177-184.

MAT-2004561 v1.0
