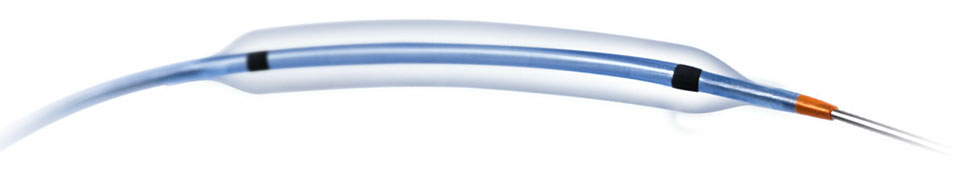

NC TREK™ Coronary Dilatation Catheter

Experience controlled deliverability for crossing stents and lesions

NC Trek

Technical Information

NC TREK™ Coronary Dilatation Catheter
NOMINAL	12 atm
RBP	18 atm
TIP ENTRY PROFILE	0.020 in average (3.00 mm Ø) 0.022 in maximum (1.50 mm - 3.25 mm Ø) 0.024 in maximum (3.50 mm - 5.00 mm Ø)
CROSSING PROFILE	0.027 in average (3.00 mm Ø) 0.032 in maximum (1.50 - 3.50 mm Ø) 0.037 in maximum (3.75 - 5.00 mm Ø)
RX NOTCH DIAMETER	2.6 French average (3.00 mm Ø) 2.9 French maximum
TIP LENGTH	3.5 +/- 0.5 mm (2.00 - 3.25 mm Ø) 4.5 +/- 0.5 mm (3.50 - 4.50 mm Ø)
BALLOON MATERIAL	Pebax^‡, non-compliant
MARKER MATERIAL	Flexible Tungsten/Pebax^‡
SHAFT LENGTH	143 cm
COATING	Hydrophilic
MAXIMUM GUIDE WIRE COMPATIBILITY	0.014 in
LATEX FREE	Yes

NC TREK

Ordering Information

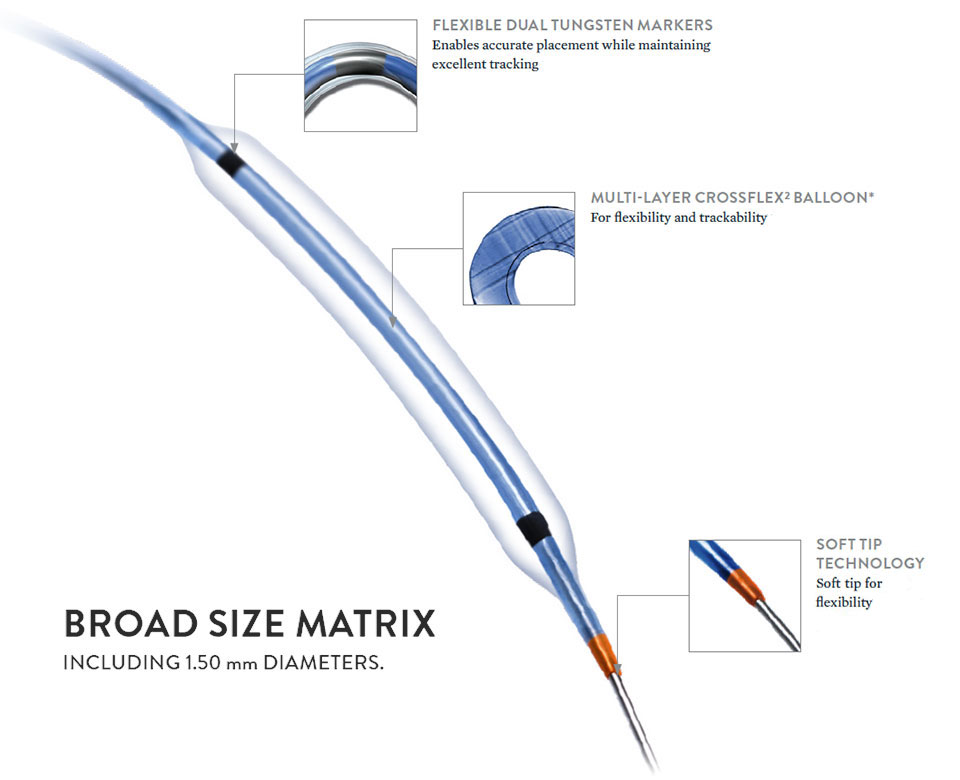

Broad Size Matrix with 59 Sizes Available

	BALLOON DIAMETER (mm)	BALLOON LENGTH (mm)
	BALLOON DIAMETER (mm)	6	8	12	15	20	25
NC TREK™ RX	1.50	1012444-06	1012444-08	1012444-12	1012444-15	1012444-20	-
	2.00	1012445-06	1012445-08	1012445-12	1012445-15	1012445-20	-
	2.25	1012446-06	1012446-08	1012446-12	1012446-15	1012446-20	-
	2.50	1012447-06	1012447-08	1012447-12	1012447-15	1012447-20	1012447-25
	2.75	1012448-06	1012448-08	1012448-12	1012448-15	1012448-20	-
	3.00	1012449-06	1012449-08	1012449-12	1012449-15	1012449-20	1012449-25
	3.25	1012450-06	1012450-08	1012450-12	1012450-15	1012450-20	-
	3.50	1012451-06	1012451-08	1012451-12	1012451-15	1012451-20	1012451-25
	3.75	-	1012452-08	1012452-12	1012452-15	1012452-20	-
	4.00	-	1012453-08	1012453-12	1012453-15	1012453-20	-
	4.50	-	1012454-08	1012454-12	1012454-15	1012454-20	-
	5.00	-	1012455-08	1012455-12	1012455-15	1012455-20	-

Compliance Chart

INFLATION PRESSURE (atm)	BALLOON DIAMETER (mm)
INFLATION PRESSURE (atm)	1.50	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00	4.50	5.00
2	1.36	1.75	1.97	2.11	2.34	2.52	2.74	2.99	3.21	3.35	3.76	4.25
3	1.37	1.78	1.99	2.19	2.38	2.58	2.84	3.05	3.29	3.45	3.87	4.35
4	1.38	1.81	2.02	2.22	2.43	2.63	2.89	3.11	3.35	3.52	3.93	4.43
5	1.39	1.84	2.04	2.26	2.47	2.68	2.95	3.18	3.41	3.59	3.99	4.50
6	1.41	1.87	2.09	2.30	2.51	2.73	3.01	3.23	3.47	3.65	4.06	4.58
7	1.42	1.90	2.13	2.34	2.55	2.78	3.06	3.29	3.53	3.71	4.13	4.66
8	1.43	1.93	2.16	2.38	2.58	2.83	3.10	3.34	3.59	3.77	4.20	4.73
9	1.45	1.95	2.19	2.42	2.63	2.87	3.15	3.37	3.63	3.83	4.26	4.80
10	1.46	1.98	2.22	2.45	2.66	2.91	3.16	3.42	3.67	3.87	4.32	4.86
11	1.47	2.00	2.24	2.48	2.69	2.94	3.23	3.46	3.71	3.91	4.37	4.91
12 NP	1.49	2.01	2.26	2.50	2.71	2.97	3.26	3.49	3.74	3.95	4.41	4.96
13	1.50	2.03	2.28	2.53	2.73	3.00	3.28	3.51	3.77	3.98	4.45	5.00
14	1.51	2.04	2.30	2.55	2.76	3.02	3.31	3.54	3.80	4.01	4.49	5.04
15	1.52	2.06	2.32	2.57	2.78	3.04	3.34	3.57	3.82	4.04	4.53	5.08
16	1.53	2.07	2.33	2.59	2.79	3.07	3.36	3.60	3.85	4.07	4.57	5.12
17	1.53	2.09	2.35	2.62	2.82	3.09	3.39	3.62	3.88	4.10	4.60	5.16
18 RBP	1.54	2.10	2.37	2.64	2.84	3.11	3.41	3.65	3.91	4.13	4.64	5.20
19	1.55	2.12	2.39	2.67	2.86	3.14	3.44	3.68	3.93	4.16	4.68	5.24
20	1.56	2.13	2.41	2.69	2.88	3.16	3.47	3.71	3.96	4.19	4.72	5.28
21	1.57	2.15	2.42	2.72	2.90	3.18	3.50	3.75	-	4.22	4.76	5.33
22	1.58	2.17	2.45	2.75	2.93	3.21	-	3.78	-	4.25	-	5.37

*CrossFlex2 technology available on 3.5 mm - 5.0 mm balloon sizes
Data on file at Abbott.

MAT-2111437 v1.0

Information contained herein for distribution outside the U.S. only.
