High Pressure Precision With Outstanding Deliverability
Armada 14 NC PTA Catheter combines a non-compliant balloon with improved deliverability and low crossing profile.
Controlled Expansion at High Pressure
- Uniform expansion for reliable and precise dilatation1
- High-pressure (20 atm RBP) performance to confidently achieve luminal gain2
- Armada™ 14 NC PTA Catheter maintains its diameter even at 20 atm
Outstanding Deliverability
- Has low crossing profile, comparable to semi-compliant balloons
- Has excellent pushability and deliverability for confident navigation through calcified lesions
- Facilitates recrossing after initial inflation
Designed for Esprit™ BTK System
- Indicated to post-dilate Esprit™ BTK System which requires full strut apposition3,4
- Broad size matrix and compatible with Esprit™ BTK System across all diameters and lengths

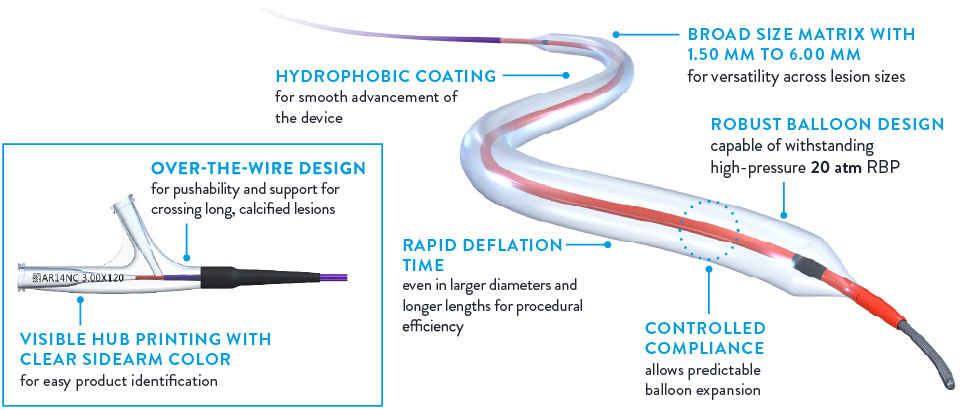

Armada™ 14 NC PTA Catheter Design Elements
Improves Access and Crossing in Tight and Calcified Lesions with Low Balloon Crossing Profile

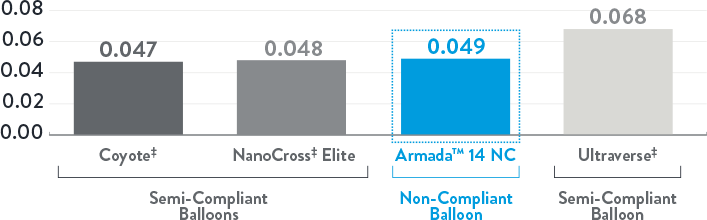

Armada™ 14 NC vs. 0.014" Balloons
Balloon Crossing Profile (inches)
Balloon sizes: 3.00 x 120 mm

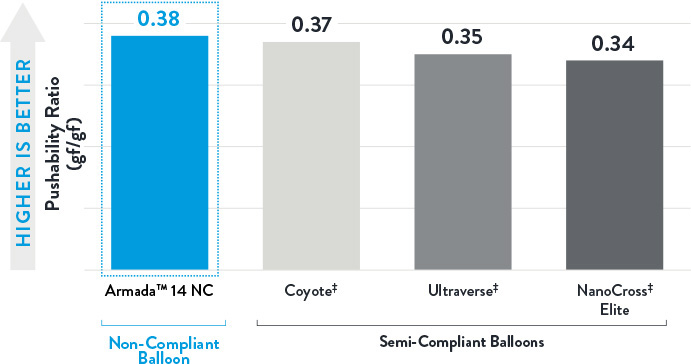

Armada 14™ NC PTA Catheter Has Excellent Pushability for Confident Navigation Through Calcified Lesions
Pushability Ratio
Force delivered distal tip/force exerted at proximal end
Balloon sizes: 3.00 x 120 mm

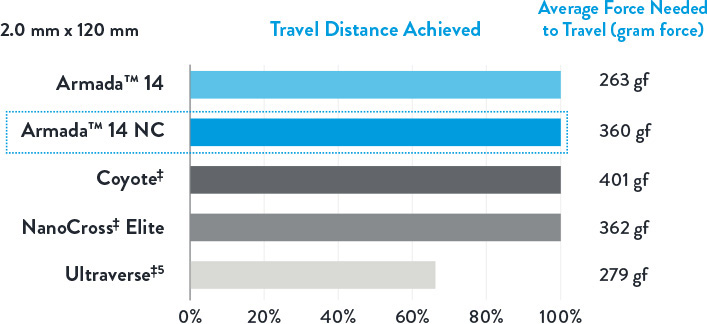

Armada 14™ NC PTA Catheter Requires Low Force for Re-Crossing After Initial Inflation
5Ultraverse‡ did not reach the intended target destination
Armada™ 14 NC PTA Catheter Technical Features
Nominal Pressure / Rated Burst Pressure
| Pressure (atm) | Armada™ 14 PTA Catheter | |||||||
|---|---|---|---|---|---|---|---|---|
| 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 5.0 | 6.0 | |
| 12 (NP) | 1.51 | 1.97 | 2.46 | 2.99 | 3.54 | 4.02 | 4.95 | 5.97 |
| 13 | 1.52 | 1.99 | 2.48 | 3.01 | 3.57 | 4.06 | 4.99 | 6.02 |
| 14 | 1.53 | 2.00 | 2.51 | 3.04 | 3.60 | 4.09 | 5.03 | 6.08 |
| 15 | 1.54 | 2.02 | 2.52 | 3.06 | 3.62 | 4.12 | 5.06 | 6.12 |
| 16 | 1.55 | 2.03 | 2.54 | 3.07 | 3.65 | 4.15 | 5.10 | 6.16 |
| 17 | 1.56 | 2.04 | 2.56 | 3.09 | 3.67 | 4.17 | 5.13 | 6.20 |
| 18 | 1.57 | 2.06 | 2.57 | 3.11 | 3.68 | 4.19 | 5.15 | 6.23 |
| 19 | 1.58 | 2.07 | 2.59 | 3.12 | 3.70 | 4.22 | 5.18 | 6.27 |
| 20 (RBP) | 1.58 | 2.08 | 2.60 | 3.14 | 3.72 | 4.24 | 5.21 | 6.30 |
| 21 | 1.59 | 2.09 | 2.62 | 3.16 | 3.74 | 4.26 | 5.23 | 6.34 |
| 22 | 1.60 | 2.11 | 2.64 | 3.18 | 3.76 | 4.28 | 5.26 | 6.37 |
Technical Information
| Balloon Markers | Tungsten/Pebax† |
| Balloon Material | (1.50-2.50 mm) Polyamide (3.00-6.00 mm) Multi-layer polyamide/polyether block amide |
| Coating | Hydrophobic |
| Diameters* | 1.50-6.00 mm |
| Lengths* | 20-150 mm |
| Compliance | Non-compliant (NC) |
| Catheter Length | 90 and 150 cm |
| GW Compatibility | 0.014" |
| Sheath Compatibility* | 4F, 5F and 6F |
| Nominal Pressure (NP) | 12 atm (all sizes) |
| Rated Burst Pressure (RBP) | 20 atm (all sizes) |
| Shelf Life | 42 months |
Explore Armada™ 14 NC PTA Catheter
Features
*Data on file at Abbott. Benchtop testing may not be indicative of clinical performance. Demonstrated numerically higher pushability compared to data on file.
References
- Cuculi F, et al. Open Heart 2020;7:e001204.
- Huizing E, et al. International Angiology. 2020;39(5):390-7.
- Esprit™ BTK Instructions for Use (IFU). Refer to IFU for additional information.
- Armada™ 14 NC Instructions for Use (IFU). Refer to IFU for additional information.
