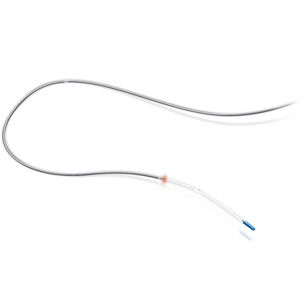

Dragonfly™ OPTIS™ Imaging Catheter

Ordering Information

For Treatment Confidence

Abbott's Optical Coherence Tomography (OCT) provides high-resolution images and automated measurements enabling you to make well-informed decisions.

The Dragonfly™ OPTIS™ Imaging Catheter offers anatomical insights and high-resolution imaging.


  • High-resolution imaging
  • Rapid Exchange Tip for easier loading and tracking
  • Proprietary sheath design for continuous calibration throughout pullback
  • Radiopaque markers — at the distal tip, imaging lens and 50 mm proximal to the lens — aid the physician in aligning the OCT pullback to region of interest
  • Shaft markers — at 90 cm and 100 cm notify the physician when the distal tip is exiting the guide catheter
  • 2.7 F low-profile tip
  • Hydrophilic coating
  • Compatible with standard 0.014" guide wires
  • Compatible with D.2, AptiVue™ E.2 and Ultreon™ 1.0 Software or higher
Dragonfly OPTIS

Source: Data on file at Abbott.

MAT-2115050 v1.0
