CONNECT patient's skin electrodes to Merlin Programmer^TM via AVEIR^TM Link Module

INSERT AVEIR VR Leadless Pacemaker via ergonomic catheter for minimally invasive procedure, ensuring helix is fully covered during catheter navigation

MAP ventricular implanting location before fixation by touching endocardium with AVEIR VR Leadless Pacemaker's tip electrode

FIXATE the AVEIR VR Leadless Pacemaker to the ventricular endocardium using the screw-in mechanism

RELEASE AVEIR VR Leadless Pacemaker and withdraw delivery catheter

For a more detailed workflow, refer to the AVEIR VR Leadless Pacemaker Instructions for Use (IFU) or contact your Abbott Sales Representative for training.

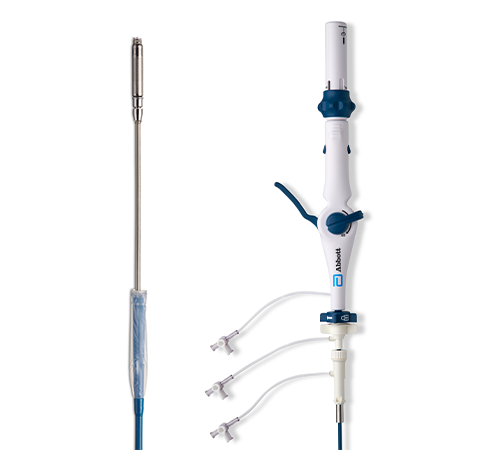

AVEIR Delivery and Retrieval Catheters

• Designed for ergonomic, single operator use


• Steerable delivery catheter with deflection mechanism^1,2


• Hydrophilic coating on introducer sheath and a choice of 30cm and 50cm lengths³


• Protective sleeve fully covers the AVEIR VR Leadless Pacemaker's helix during catheter navigation in order to reduce the risk of damaging the helix or an injury to cardiovascular structures^1,2

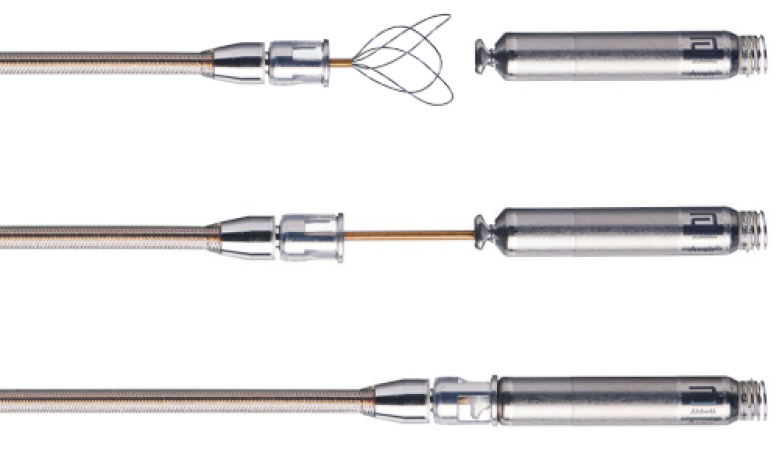

Tri-loop snare re-docking mechanism

Retrieval Catheter Enables Chronic Retrieval

• AVEIR tri-loop snare re-docking mechanism enables retrieval of the Leadless Pacemaker


• AVEIR VR Leadless Pacemaker's active fixation helix uses a screw-in mechanism to enable both implantation and chronic retrieval of the Leadless Pacemaker^1,4


• The AVEIR VR Leadless Pacemaker's predicate device has a chronic retrieval success rate above 80% with helix fixation through 7 years, regardless of implant duration.⁴ AVEIR VR Leadless Pacemaker and retrieval catheter are designed for chronic retrieval. Limited data is available for AVEIR VR Leadless Pacemaker
