Armada 35 Family
Ordering Information
Xact

Profile and push

The profile you need with the push you want.

Customized engineering for multiple applications

  • Offers a broad portfolio with each size range engineered for specific clinical situations
  • Balloon lengths from 20 mm to 250 mm
  • Balloon diameters from 3 mm to 14 mm
  • Catheter lengths of 80 cm and 135 cm
  • 5-7 F sheath compatibility

Outstanding performance

  • Low crossing profile and tip for ease of entering and crossing challenging lesions
  • Outstanding pushability even with long lengths
  • Quick deflation when it matters most

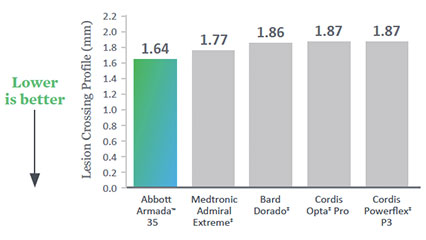

Low Crossing Profile

Crossing Profile
Lesion Crossing Profile (mm)
Balloon Lengths 5.0 x 40 mm

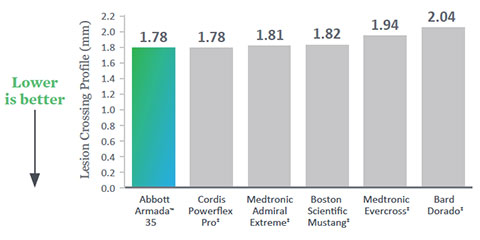

Crossing Profile
Lesion Crossing Profile (mm)
Long Balloon Lengths 6.0 x 200 mm**

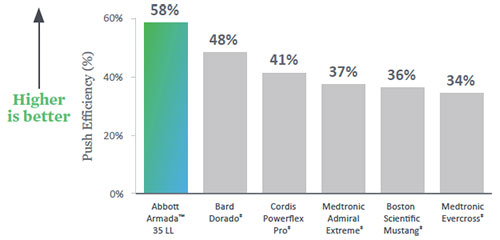

High Push Efficiency

Push Efficiency
Push Efficiency (%)
Long Length Balloon Lengths 6.0 x 200 mm

Catheter Cross-Section

Novel crescent-shaped contrast lumen provides strong push transmission and rapid deflation.

Catheter Cross Section

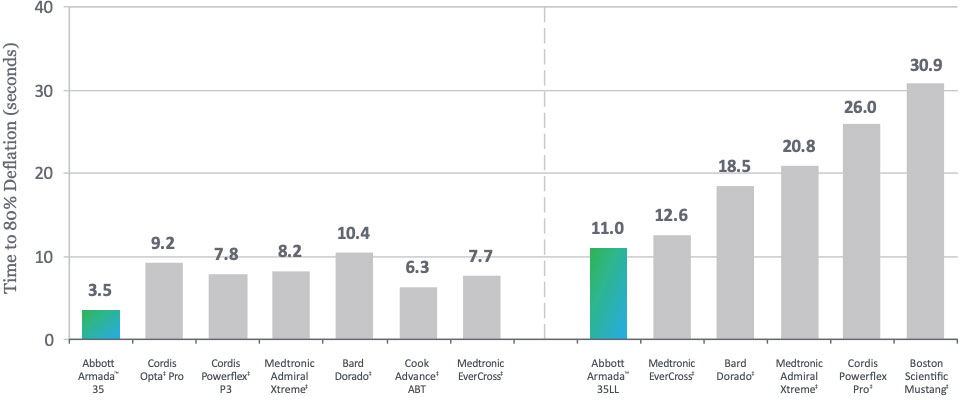

Fast Deflation Times (seconds)

Fast Deflation Time chart
Time to 80% Deflation from RBP

Balloon Compliance

Balloon Compliance Table

Controlled three-dimensional (3D) compliance

Design, materials, and manufacturing technologies result in a low-profile balloon with controlled compliance in every dimension (i.e., diameter and length)

Balloon Compliance Across Three Dimensions (3D)
Balloon Compliance Across Three Dimensions (3D)

Nominal/Rated Burst Pressures and Guide Compatibility

Balloon Compliance Table

Data on file at Abbott.
**All tests performed using 6x200 mm balloons except Powerflex Pro 6x220 mm.

MAT-2116358 v1.0
