Don't Just Close. Repair.
Extravascular
- Designed not to impact lumen diameter or distal blood flow
- Proprietary nitinol design – nothing remains inside the artery
- Re-access/Reclose
Easy
- Advanced design for greater stability and ease of use
- Numbered windows and numbered steps provide visual guidance for step completion
- Four clicks to close1
Gives In-Lab Confidence
- 360º circumferential clip closure
- Secure Closure – Close, Challenge and Confirm on the table gives you the close you can trust
- Early ambulation – RISE Study median time to ambulation was 5.92 minutes (Per-Protocol Population RISE Study Endpoints)2

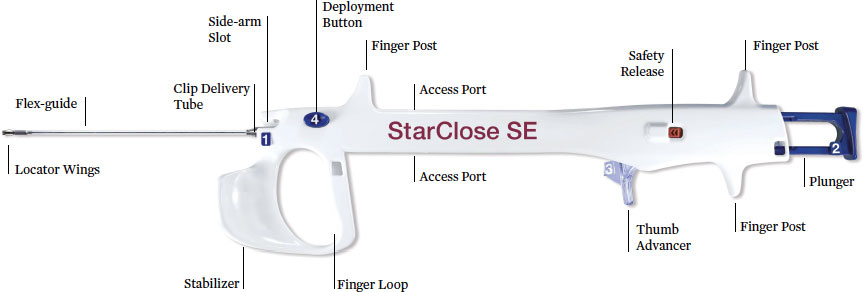

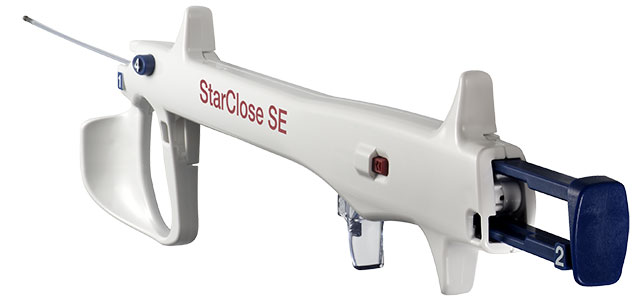

StarClose SE™ System Components

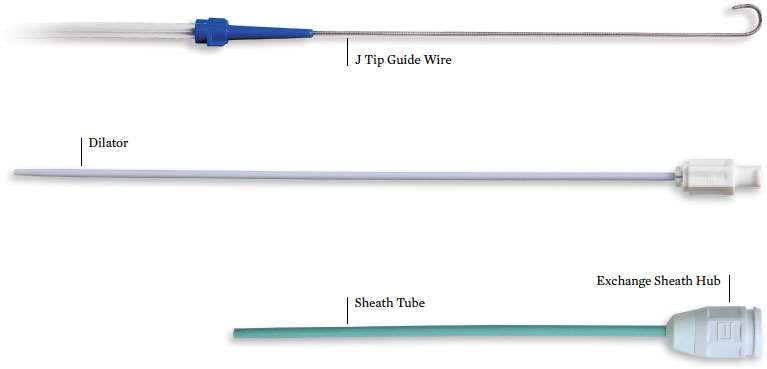

StarClose SE™ Exchange System

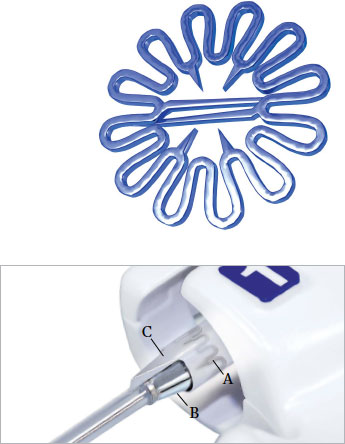

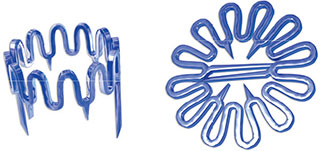

StarClose SE™ Clip
Provides Extravascular Arterial Closure
Nitinol (56% Nickel, 44% Titanium)
- 4 mm diameter
- 0.2 mm (0.008") thick
Housed Inside Clip Delivery Tube
A. Clip
B. Clip Delivery Tube
C. Sheath Splitter

Data on file at Abbott.
References
- StarClose SE™ Vascular Closure System – Instructions for Use (IFU). Refer to IFU for additional information.
- Burke et al. StarClose Vascular Closure System (VCS) is Safe and Effective in Patients Who Ambulate Early Following Successful Femoral Artery Access Closure - Results from the RISE Clinical Trial. CCI 2012, 80:45-52.
MAT-2409384 v1.0
