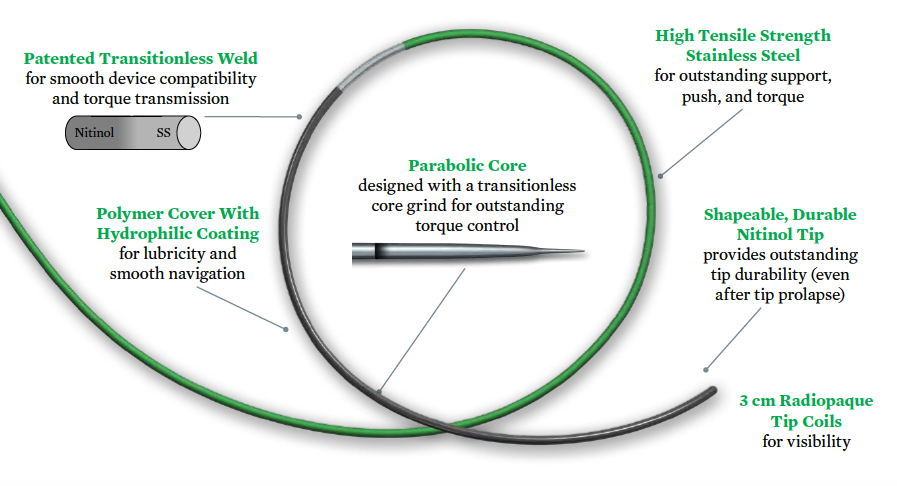

Hybrid workhorse guide wires combine the key advantages of nitinol wires and stainless steel wires.
Crossing wire, with 10 cm nitinol at distal end, provides high support and a flexible tip (4g) for crossing lesions or prolapsing in a tight loop.
Navigation wire, with 25 cm nitinol at distal end, provides flexible support and a soft tip (4g) to effectively track through tortuous peripheral vessels.
Product | Part Number | Diameter | Length | Nitinol Length | Tip Load | Tip Shape |
---|---|---|---|---|---|---|
Hi-Torque Command™ 18 ST | 1013784 | 0.018 in | 210 cm | 10 cm | 4 g | Straight |
Hi-Torque Command™ 18 ST | 1013785 | 0.018 in | 300 cm | 10 cm | 4 g | Straight |
Hi-Torque Command™ 18 LT | 1013806 | 0.018 in | 210 cm | 25 cm | 4 g | Straight |
Hi-Torque Command™ 18 LT | 1013807 | 0.018 in | 300 cm | 25 cm | 4 g | Straight |

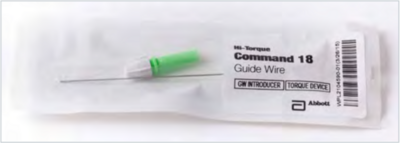

Hi-Torque Command™ 18 guide wire is packaged with a torque device and guide wire introducer that can be used for tip shaping.
Data on file at Abbott.
MAT-2405516 V1.0
